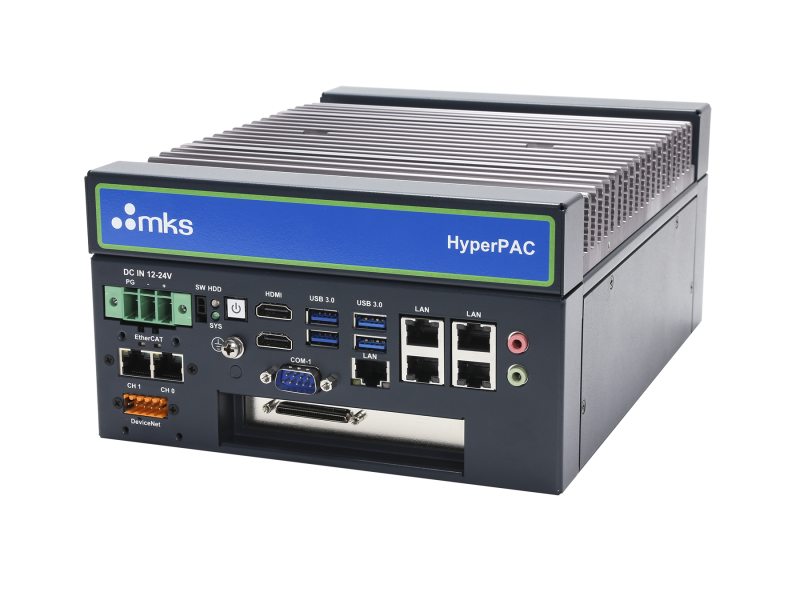

Industrial PC, Xeon CPU, 32GB ECC DRAM, with PWM Fan Option
Model: AS08640G-08
Industrial PC, Xeon CPU, 32GB ECC DRAM, with PWM Fan Option
Model: AS08640G-08
Overview
Overview
The HyperPAC Industrial PC programmable control solution delivers top of the line performance with reliable operation for a variety of control and automation tasks. Compared to standard IPCs, the HyperPAC provides a highly compact, fanless solution, with existing expandable IO via PCIe, along with flexibility to expand and configure the system. The HyperPAC is a flexible, scalable solution for numerous applications and project requirements which enables IIoT (Industrial Internet of Things) integration.
Technical Specs
- CPU TypeIntel Xeon E3-1268L v5, 2.40 GHz, 35W
- Storage DeviceOne 2.5 in. Drive Bay SSD removable,
One 2.5 in. Drive Bay SSD fixed - Chip SetIntel C236 PCH
- MemoryTwo DR4 16GB ECC SODIMM, up to 32GB
- Operating SystemWindows® 10 IoT Enterprise LTSB, TenAsys INtime RTOS for Windows
- DisplayTwo HDMI type A for HDMI v1.4b
One VGA - USB PortFront: Two USB 2.0 type A connectors
Back: Four USB 3.0 type A connectors - EthernetFive RJ45 Connectors for GbE (Intel I211AT x I219LM x 1)
- AudioTwo (MIC-in, Line-out)
- Power InterfaceTwo on/off switches (1 front, 1 back)
2 pin remote power on/off connector
3 pin DC power input (+, -, GND) - CommunicationDB-9 port (RS-232/422/485)
- Expansion Slots1: Full size mini card (PCIe)
2: Full size mini card (PCIe)
3: PCIEx[1] * 1 - Power Input12 - 24 VDC
- Power ConsumptionMax 35 W (CPU), 120W (Adapter)
- MountingWallmount (horizontal and vertical)
- Dimensions195 x 110 x 260 mm (WxHxD)
- Weight9.9 lb (4.9 kg)
- Operating Temperature Range0 ~ 55°C according to IEC60068-2 with 0.5m/s airflow (with smart fan)
- Storage Temperature-40 ~ 80°C
- Relative Humidity5 - 95%, @ 40°C, non-condensing
- VibrationRandom, 1GRMS, 5~500Hz, anti-vibration design
- Shock Tolerance/Immunity15 G (1/2 sine, 11 ms)
- ComplianceCE, FCC Class A
Technical Specs
- CPU TypeIntel Xeon E3-1268L v5, 2.40 GHz, 35W
- Storage DeviceOne 2.5 in. Drive Bay SSD removable,
One 2.5 in. Drive Bay SSD fixed - Chip SetIntel C236 PCH
- MemoryTwo DR4 16GB ECC SODIMM, up to 32GB
- Operating SystemWindows® 10 IoT Enterprise LTSB, TenAsys INtime RTOS for Windows
- DisplayTwo HDMI type A for HDMI v1.4b
One VGA - USB PortFront: Two USB 2.0 type A connectors
Back: Four USB 3.0 type A connectors - EthernetFive RJ45 Connectors for GbE (Intel I211AT x I219LM x 1)
- AudioTwo (MIC-in, Line-out)
- Power InterfaceTwo on/off switches (1 front, 1 back)
2 pin remote power on/off connector
3 pin DC power input (+, -, GND) - CommunicationDB-9 port (RS-232/422/485)
- Expansion Slots1: Full size mini card (PCIe)
2: Full size mini card (PCIe)
3: PCIEx[1] * 1 - Power Input12 - 24 VDC
- Power ConsumptionMax 35 W (CPU), 120W (Adapter)
- MountingWallmount (horizontal and vertical)
- Dimensions195 x 110 x 260 mm (WxHxD)
- Weight9.9 lb (4.9 kg)
- Operating Temperature Range0 ~ 55°C according to IEC60068-2 with 0.5m/s airflow (with smart fan)
- Storage Temperature-40 ~ 80°C
- Relative Humidity5 - 95%, @ 40°C, non-condensing
- VibrationRandom, 1GRMS, 5~500Hz, anti-vibration design
- Shock Tolerance/Immunity15 G (1/2 sine, 11 ms)
- ComplianceCE, FCC Class A
