Sorry, this product is no longer offered for sale.

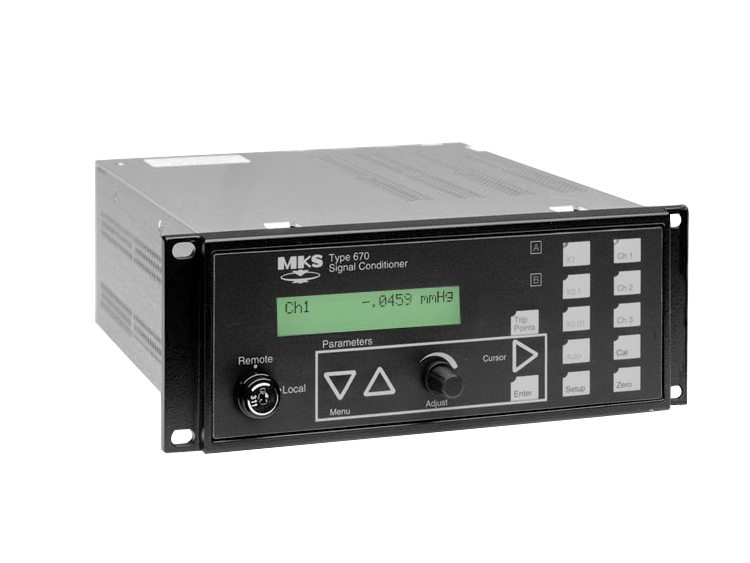

Signal Conditioner, Display, RS232 Interface, 670B Series
Model: 670BD21
Signal Conditioner, Display, RS232 Interface, 670B Series
Signal Conditioner, Display, RS232 Interface, 670B Series
Model: 670BD21
Overview
Overview
The 670BD21 Signal Conditioner/Display/Power Supply provides full control of all High Accuracy Baratron® manometer features. All functions can be monitored and controlled via the RS232 interface.
Technical Specs
-
TypeSignal Conditioner, Power Supply and Readout
-
Display2 line LCD, readings updated twice/second
-
Display UnitsTorr, mTorr, mmHg, mbar, Pa, kPa, inHg, inH20, cmH20, psi, % of Full Scale, ppm of Full Scale (All user - selectable)
-
Channels1
-
Output Power0 to ±10 VDC on each range into >10 kOhm load
-
InterfaceRS232
-
ConnectorsRS232 Connector 9-pin male type D
-
Trip PointsTwo, 24 VAC/DC @ 1 Amp resistive (contact ratings), Two LEDs on front panel indicate status of each relay
-
Use690 and 698 from 0.1 - 25,000 mmHg (Torr) Full Scale
-
Rangesx1, x0.1, x0.01 of sensor Full Scale, manual or auto-ranging
-
Data Averaging0.1 to 10 sec, user - selectable
-
Response Time1, 40, or 400 msec, user - selectable
-
Resolution3.5, 4.5, or 5.5 digits, user - selectable (Note: Useable system resolution depends upon sensor choice and application.)
-
Operating Temperature15 - 40° C
-
Dimensions88 x 240 x 234 mm (3.5 x 9.5 x 9.25 in.)(height x width x depth)
