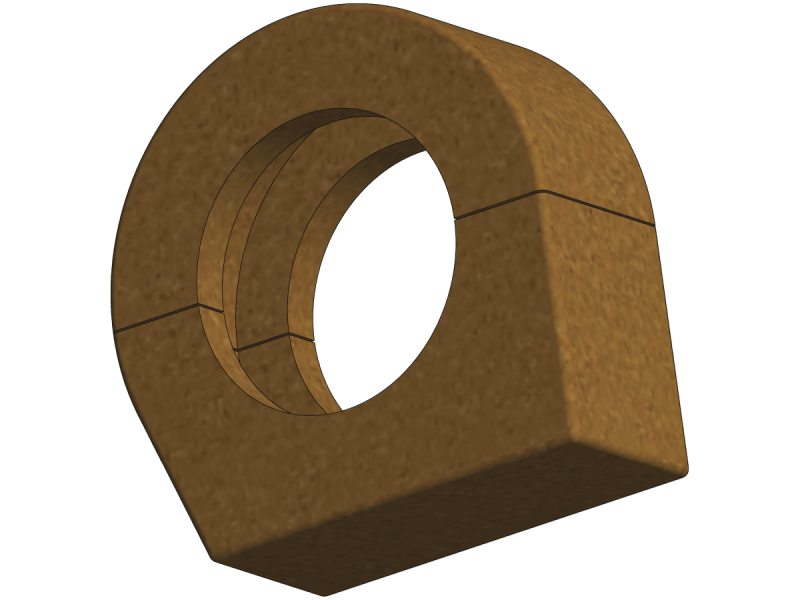

Flange Insulator, Polyimide, fits NW40 ISO-KF Clamp, 1.5 in. to 1.5 in. Tubing
Model: 502015-0269
Flange Insulator, Polyimide, fits NW40 ISO-KF Clamp, 1.5 in. to 1.5 in. Tubing
Model: 502015-0269
Overview
Overview
The 502015-0269 Polyimide Flange Insulator fits an NW40 ISO-KF Clamp on 1.5 in. to 1.5 in. Tubing.
Technical Specs
- SeriesSeries 49UL
- TypeFlange Insulator
- Insulation MaterialPolyimide
- Flange SizeNW40
- For Use WithMKS Wing Nut Clamp 100312905, Toggle Clamp 100318805
- Outer Dimension4.20 in. (107 mm)
- Hole 1 Inner Dimension2.68 in. (68.1 mm)
- Hole 2 Inner Dimension2.68 in. (68.1 mm)
Technical Specs
- SeriesSeries 49UL
- TypeFlange Insulator
- Insulation MaterialPolyimide
- Flange SizeNW40
- For Use WithMKS Wing Nut Clamp 100312905, Toggle Clamp 100318805
- Outer Dimension4.20 in. (107 mm)
- Hole 1 Inner Dimension2.68 in. (68.1 mm)
- Hole 2 Inner Dimension2.68 in. (68.1 mm)
Resources & Downloads
Literature
Series 49UL Thermal Management System(2.4 MB, PDF)
