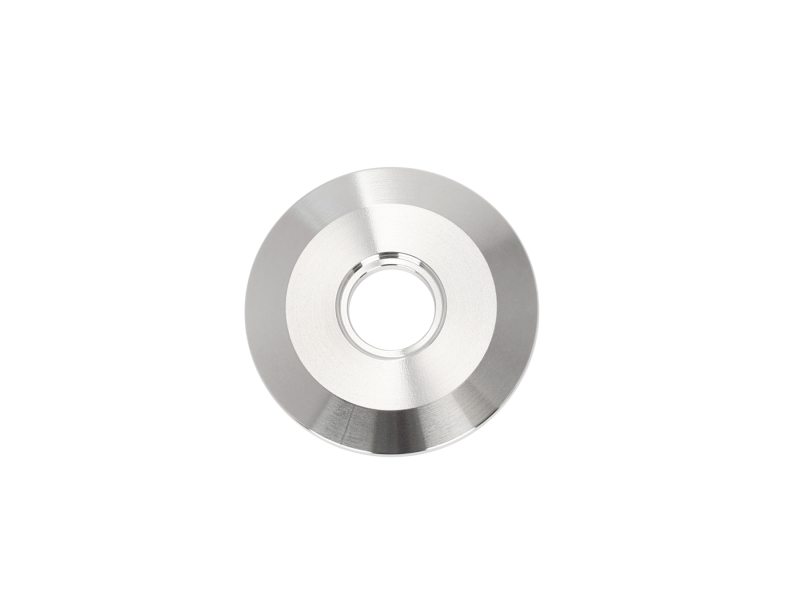

Bored Blank Flange, NW40 ISO-KF Flange, 0.75 in. Tube OD Bore, 304 S.S.

Technical Specs

  • Component Type
    Bored Blank Flange
  • Series
    Series 31
  • Material
    304 Stainless Steel
  • Flange Type
    ISO-KF
  • Flange Size
    NW40
  • Tube OD
    0.75 in.
  • Thickness
    0.20 in. (5 mm)
  • Inner Diameter
    0.63 in. (16 mm)
  • Bore Diameter
    0.76 in. (19 mm)
  • Dimension "A"
    0.20 in.
  • Dimension "B"
    0.63 in.
  • Dimension "C"
    0.76 in.
