Static Mixer
Overview
A contactor for dissolving ozone gas in fluids

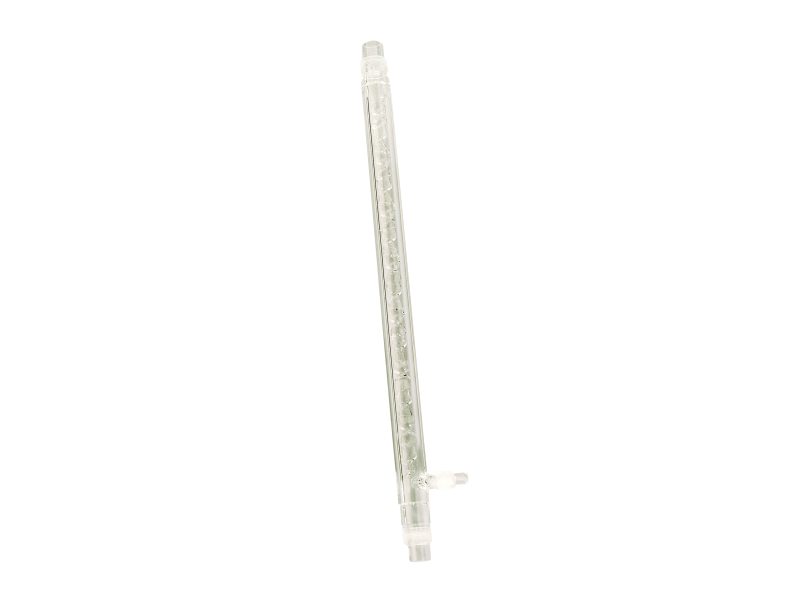

The Static Mixer is designed to dissolve gases efficiently in fluids. Both gas and fluid are injected into the Static Mixer under pressure. A series of baffles converts the kinetic energy into turbulence, which results in improved mixing and solution.Â
- No moving parts, no contamination
- High efficiency mass transfer for maximum dissolved ozone
- Quartz and PFA/PTFE versions available to accommodate multiple chemistries
Products
| Compare | Description | Drawings, CAD & Specs | Availability | Price | |||
|---|---|---|---|---|---|---|---|
|
STATIC-MIXER Static Mixer, Contactor for Dissolving Ozone Gas in Fluids |
|
Specifications
-
TypeOzone Static Mixer
-
Gas Flow RangeBetween 30% and 100% of the fluid flow (slm per l/min), 50% recommended
-
Fluid Flow Range5-12 or 10-25 L/min recommended, depending on configuration
-
Operating Pressure3.2 bargauge (46 psig) at 24°C (75°F)
1.5 bargauge (22 psig) at 130°C (266°F)
PFA 1.0 bargauge (15 psig) at 130°C (266°F), Quartz (maximum) -
Gas Phase FittingsType 8: Flaretek compatible 3/8 in.
Type 12: Flaretek compatible 3/8 in.; Pillar 3/8 in. for PFA version available -
Fluid Phase FittingsType 8: Flaretek compatible 1/2 in.
Type 12: Flaretek compatible 3/4 in.; Pillar 3/4 in. for PFA version available
