Sorry, this family of products is no longer available. The replacement family of products is PVS6F Portable Vacuum Calibration System.

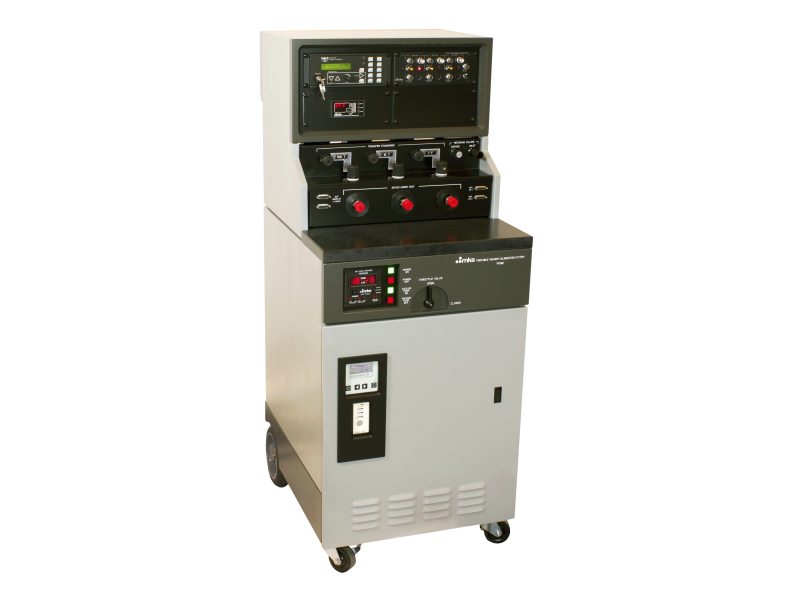

PVS6E Portable Vacuum Calibration System
Overview
Mounted in a sturdy transportable cart, the PVS6E provides NIST traceable calibrations over the pressure range from 10-5 to 1000 mmHg and can be used to calibrate capacitance manometers, thermocouple gauges, Pirani gauges, convection enhanced Pirani gauges, other capacitance manometers and transmitters, and mechanical/dial gauges.
Specifications
-
TypeVacuum Calibration System
-
Transfer StandardType 690 Absolute Sensor (NIST traceable)
-
AccuracyStandard: 0.08% of Reading (± temp. coefficients)
Optional: 0.05% of Reading (± temp. coefficients) -
Resolution1 x 10-6 of Full Scale
-
Fitting TypeSwagelok® 8 VCR® male (3)
-
Operating Temperature15° to 40°C
-
Readout670 Series, 5½-digit LCD
-
Power Requirements110 VAC, 60 Hz; 220 VAC, 50 Hz
-
Warm-up Time4 hours
-
Weight250 lbs (110 kg)
-
Reference Manometer690 Absolute Sensor
-
Pressure ControlManual needle valve to control gas inlet; manual isolation valve and metering bypass valve to control pump speed
-
High Vacuum GaugeIMAG ionization gauge and controller provides 1 x 10-3 to 1 x 10-9 mmHg measurement
-
Standby Power500 V.A. uninterruptible power supply keeps three Transfer Standards warmed up and ready to use for up to 60 min
-
Test/Calibration5-10 psig dry filtered N2
-
Vacuum Pumping SystemMechanical pump: diaphragm
High vacuum pump: hybrid turbo/drag air-cooled Normal base pressure: <5 x 10-7 mmHg
Resources
Drawings & CADs
- PVS6E Portable Vacuum Calibration System Dimensional Drawing (70.4 kB, PDF)
Literature
- PVS6E Portable Vacuum Calibration System (archived) (216.3 kB, PDF)
