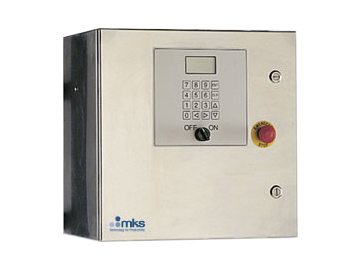

EO3™ Ozone Generator for Sanitation Applications
EO3™ Ozone Generator for Sanitation Applications
The EO3™ generator reliably produces high concentration ozone ranging from 6 to 10% by weight, while efficiently producing up to 3 ppd (57 g/hr) of ozone. The EO3 ozone generator uses flat plate ozone generation technology and an oxygen generation system. The standard system design is dual rated for 50/60 Hz operation and requires one single point power connection, enabling global operation.
Specifications
- TypeEO3 Ozone Sanitation Generator/System
- Ozone Output0.5 - 3lbs/day (10-57 g/hr)
- Ozone Concentration10 - 6%
- Ozone Gas Piping Inlet Requirement0.25 in. MNPT
- Oxygen Concentrator Drying Capability-100°F dew point
- Oxygen Concentrator Parent GasCompressed Air
- Oxygen Concentrator Gas Output25 scfh at 90% oxygen weight conc.
- Cooling Water Flow Required0.5 gpm (at 20-40 psig) at 50-85°F (at or above ambient dew point)
- Cooling Water Inlet/Outlet Requirement0.25" FNPT
- Compressed Air Flow Requirement5.5 cfm at 45 psig (11 scfm)
- Compressed Air Inlet Requirement0.5 in. FNPT
- Gas Outlet Pressure4 - 15 psig
- Air TubingPolypropylene
- Water TubingPolypropylene
- O2/O3 Gas TubingPTFE/304 Stainless Steel
- Voltage Requirements208 - 240VAC
- Current Requirements3.5 Amps Full Load
- Frequency50/60 Hz
- Phase1-phase
- Frame Material304 Stainless Steel
- Enclosure MaterialBrushed Stainless Steel
- DimensionsGenerator: 18 inches W x 18 inches H x 13 inches D
System: 18 inches W x 71 inches H x 15 inches D - Weight200 lbs
