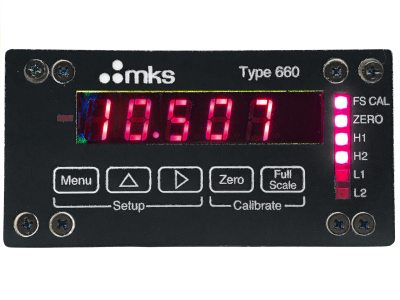

660C Single-channel Digital Power Supply and Readout
660C Single-channel Digital Power Supply and Readout
The 660C Single-channel Digital Power Supply and Readout is a microprocessor-based power supply and readout module for use with capacitance manometers and mass flow meters requiring ±15 VDC and 250 mA maximum power, and any output signal in the range of 0 to 10 VDC.
Specifications
- Display5 Digit
- Number of Channels1
- Power Requirements100, 120, 200 or 240 VAC
- Input Signal0 to 10 VDC
- Output Power±15 VDC @ 250 mA
- Communication ProtocolOptional RS232
- For Use WithMKS Instruments models 121, 221, 223, 622, 623, 624, 626, 627 or 722 capacitance manometers and Type 179 and 358 mass flow meters
- Dimensions48 x 96 x 140 mm
Accessories
Compatible Cables
| Compare | Description | Drawings, CAD & Specs | Avail. | Price | ||
|---|---|---|---|---|---|---|
 | RCB226S-2-10Manometer Cable, 660, PR4000B or 651 Controllers to 226A Manometers, 10 ft., RoHS | |||||
| RCB700S-1-10Manometer Cable, 660 or PR4000 Controllers to 727, 728, 740, 750 Manometers, 10 ft., RoHS, Shielded |
Resources
Drawings & CADs
Manuals
660C Power/Display Manual(242.3 kB, PDF)
