Gate Valve, DN80 Bore, Stainless Steel, Manual Actuation
Model: GVRAD080SSMVNN0000
Gate Valve, DN80 Bore, Stainless Steel, Manual Actuation
Gate Valve, DN80 Bore, Stainless Steel, Manual Actuation
Model: GVRAD080SSMVNN0000
Overview
Overview

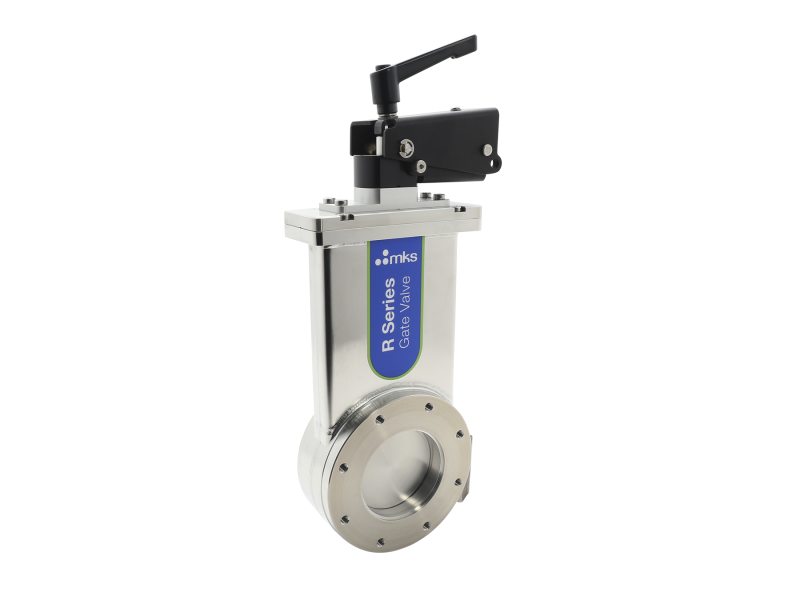

The GVRAD080SSMVNN0000, a stainless-steel Gate Valve with a DN80 bore, Viton/FKM seals, and manual actuation, is heatable to 105°C. It is optimized for isolation of roughing pumps and roughing lines in both semiconductor and general vacuum applications.
Technical Specs
-
TypeGate Valve
-
Flange SizeDN80
-
Seal MaterialViton/FKM
-
ActuationManual
-
Actuator Temperature10 - 80°C
-
Limit SwitchesNone
-
Limit SwitchNo
-
Pressure Range1* 10-7 to 1200 Torr (1.3* 10-10 - 1.6 bar)
-
MaterialStainless Steel
-
Actuator SealElastomer shaft seal
-
Bypass OptionNone
-
HeatingHeatable to 105°C
-
SolenoidsNone
-
Side to Side Leak Rate1* 10-9 atm*cc/sec
-
External Leak Rate1* 10-9 atm*cc/sec
-
Max Delta Pressure - Operating<22.5 Torr (30 mbar) chamber side high*
<22.5 Torr (30 mbar) pump side high
*Valve is operable up to 760 Torr (1 bar) chamber side high, but cycle life will be reduced with operation >30 mbar. -
Max Delta Pressure - Closed1.6 atm, either direction
-
Maintenance200,000 cycles before maintenance
