Sorry, this product is no longer offered for sale. The recommended replacement product is 90-elbow-polyimide-heater-240v.

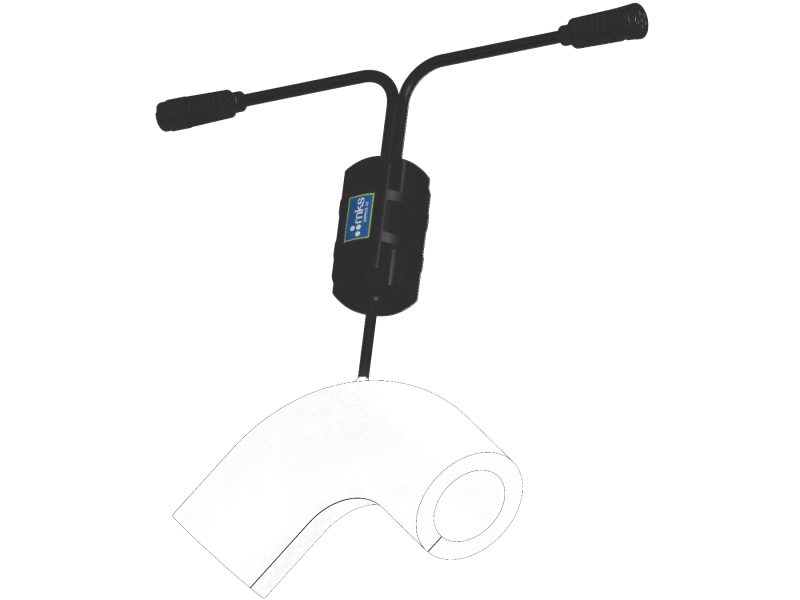

Legacy Series 49 Component Heaters

Model: 491015-2063

Legacy Series 49 Component Heaters

Model: 491015-2063

Legacy Series 49 Component Heaters

Technical Specs

  • Series
    Series 49
  • Type
    Heater Jacket
  • Insulation Material
    PTFE Teflon-Woven
  • Component Type
    90 Degree Elbow, Long Radius
  • Tube OD
    1.5 in.
  • Flange Type
    ISO-KF
  • For Use With
    100314415
  • Temperature Range
    35 - 200°C
  • Voltage Requirements
    200-240 VAC
  • Current Requirements
    0.43 Amps
  • Modulus
    4.75 in. (121 mm)
  • Bend Radius
    2.25 in. (57 mm)

Technical Specs

  • Series
    Series 49
  • Type
    Heater Jacket
  • Insulation Material
    PTFE Teflon-Woven
  • Component Type
    90 Degree Elbow, Long Radius
  • Tube OD
    1.5 in.
  • Flange Type
    ISO-KF
  • For Use With
    100314415
  • Temperature Range
    35 - 200°C
  • Voltage Requirements
    200-240 VAC
  • Current Requirements
    0.43 Amps
  • Modulus
    4.75 in. (121 mm)
  • Bend Radius
    2.25 in. (57 mm)
