PBTS1B Portable Baratron® Transfer Standard
Overview
Designed with the cleanroom in mind, the PBTS1B is a portable single-channel high accuracy pressure standard that is designed for in situ applications. Equally at home on the bench as on the production floor, the unit may be used for any pressure measurement application in the range of 10-5 to 25,000 Torr.

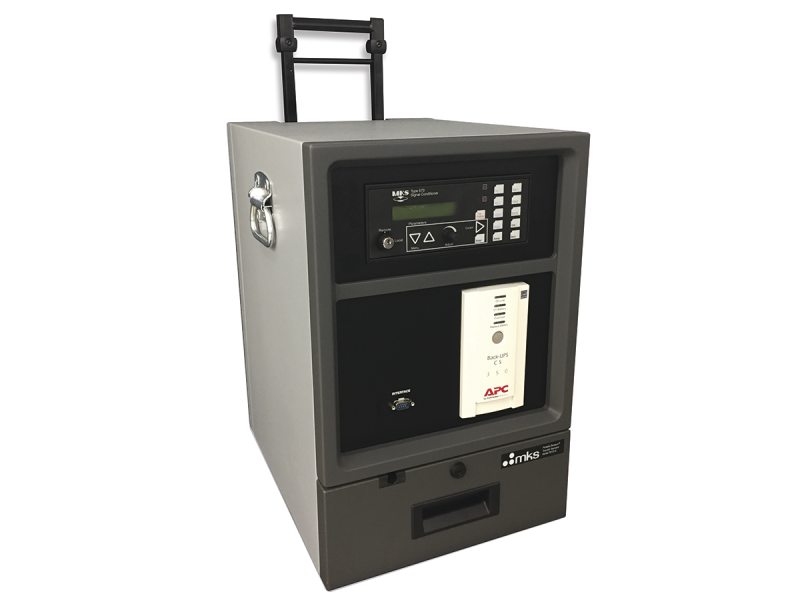

The system includes a AA06A Baratron® pressure sensor, a 670C signal conditioner/display and an uninterruptable power supply all housed in a rugged wheeled caddy with an extendible handle for easy towing. The caddy also includes an integral tilt stand which, when extended, places the unit at an angle of 15 degrees from the vertical, thereby improving visibility of the display when the unit is on the floor.
- Provides for in situ verification of process gauge accuracy and tool-to-tool consistency
- Select from 10 ranges: 0.1 to 25,000 Torr Full Scale
- The transducer is traceable to NIST which assists in compliance with government and industry regulations such as ISO9000
Products
Configuration Options
The following options are available for PBTS1B Portable Baratron® Transfer Standards
Ordering Code Example: PBTS1B01UB2
| Configuration Option | Option Code |
|---|---|
| PBTS1B Portable Baratron® Transfer Standard | PBTS1B |
| Pressure Range | |
| 0.1 mmHg | 0.1 |
| 1 | 1 |
| 10 | 11 |
| 100 | 12 |
| 1000 | 13 |
| 5000 | 53 |
| 10000 | 14 |
| 15000 | RB |
| 20000 | 24 |
| 25000 | RC |
| Input Power | |
| Standard USA & Canada input power 110 VAC, 60 Hz | U |
| 220 VAC, 50 Hz | F |
| 100 VAC, 50/60 Hz | J |
| Accuracy | |
| ±0.08% of Reading | B |
| ±0.05% of Reading (1, 10, 100, 1000 mmHg models only) | A |
| Interface | |
| RS-232 (standard) | 2 |
| IEEE-488 | 8 |
Specifications
-
TypePortable Baratron® Transfer Standard
-
Transfer StandardAA06A Absolute Sensor (NIST traceable)
-
AccuracyStandard 0.08% of Reading (±temp. coefficients)
Optional (for 1-1000 range) 0.05% of Reading (±temp. coefficients) -
Resolution1 x 10-6 of Full Scale
-
Fitting Type4 VCR® female
-
Operating Temperature15-40°C
-
Readout5½-digit LCD (670C)
-
Power Requirements110 VAC, 60 Hz; 220 VAC, 50 Hz; 100 VAC, 50/60 Hz; 3A
-
Warm-up Time4 hours. However, use of the internal 280 VA UPS will keep the transfer standard warmed up and ready for immediate use for at least 60 minutes.
-
EnclosureMetal wheeled caddy with extendible handle and tilt stand
-
Weight75 lbs (34 kg)
-
ConfigurationRemovable transfer standard (10 ft./3m cable with 4 VCR female transducer fitting)
