Specifications

  • Type

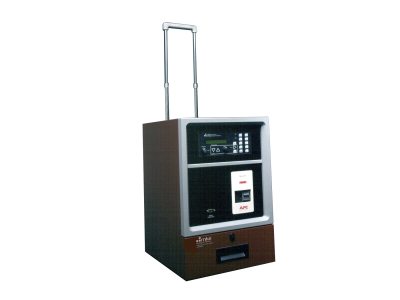

    Portable Baratron® Transfer Standard
  • Transfer Standard
    MKS 690 Absolute Sensor (NIST traceable)
  • Accuracy
    Standard: 0.08% of Reading (±temp. coefficients)
    Optional for 1-1000 Range: 0.05% of Reading (±temp. coefficients)
  • Resolution
    1 x 10-6 of Full Scale
  • Fitting Type
    4 VCR®, female
  • Operating Temperature
    15° to 40°C
  • Readout
    MKS 670, 5½-digit LCD
  • Power Requirements
    110VAC, 60 Hz; 220 VAC, 50 Hz; 100 VAC, 50/60 Hz; 3A
  • Warm-up Time
    4 hours
  • Enclosure
    Metal wheeled caddy with extendable handle and tilt stand
  • Weight
    75 lb. (34 Kg)
