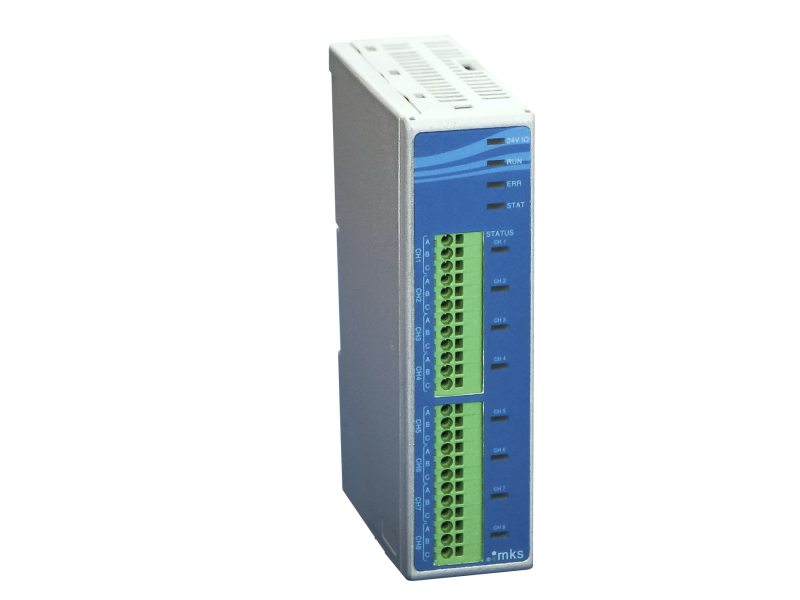

Temperature Input Module, 8 Thermocouple or PT1000 RTD Inputs, Terminal
Model: AS11860G-50
Temperature Input Module, 8 Thermocouple or PT1000 RTD Inputs, Terminal
Temperature Input Module, 8 Thermocouple or PT1000 RTD Inputs, Terminal
Model: AS11860G-50
Overview
Overview
The AS11860G-50 Temperature Input Module provides a compact and high density solution for integrating 8 channels of PT1000 RTDs or any thermocouple type temperature inputs with the MKS Automation Platform PAC or CM modules, or the MultiTherm™ 2000. Fixed terminal connectors are used to interface the temperature probe.
Technical Specs
-
TypeTemperature Input Module
-
ADC Native Resolution16-bit
-
Number of Inputs8
-
Main Power Supply24 V
-
ConnectorTerminal
-
Control Accuracy0.1°C (depending on input)
-
Input Stability0.08°C for RTDs, 0.1°C for T/Cs
-
Input Resolution0.01°C (depending on input)
-
Maximum Power Consumption per Module24 V_IO@ 0.25 Amp, 24 V_CORE@ 0.15 Amp
-
Sampling RateConfigurable from 1.6 Hz to 13 Hz
-
Thermocouple Type2-wire, Thermocouples (J, K, or N - software configurable), 3-wire resistance temperature detectors (RTDs, factory configured), PT100 (-200 - 715°C), PT1000 (-200 - 850°C)
-
Operating Temperature0 - 55°C, with 2°C upper limit reduction per 1000 ft above sea level
-
Storage Temperature-40 - 85°C
-
Altitude0-10,000 ft above sea level
-
Humidity5 - 85% non-condensing
-
Vibration2.5 g acceleration over 5 - 300 Hz sine wave, 1 octave/Minimum sine sweep
-
Shock30 g, 11 msec duration, half-sine shock pulse
-
Dimensions35 x 125 x 92.3 mm (1.4 x 3.3 x 4.9 in.)
-
MountingDIN rail
-
ComplianceEMC Emissions: EN 61000-6-2: 2005
