Sorry, this product is no longer offered for sale.

355 Micro-Ion® Bayard-Alpert Vacuum Sensors

Model: 355001-TC

355 Micro-Ion® Bayard-Alpert Vacuum Sensors

Model: 355001-TC

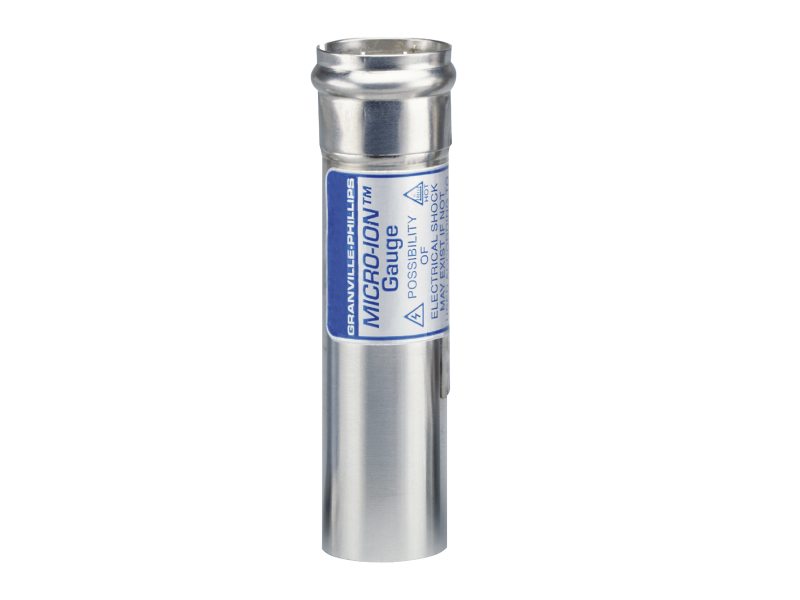

355 micro-ion bayard-alpert vacuum sensor with tube fitting

Technical Specs

  • Type
    Vacuum Gauge
  • Sensor Type
    Bayard-Alpert Hot Cathode
  • Measurement Range
    5 x 10-10 to 5 x 10-2 Torr
  • Fitting Type
    18 mm Tube
  • Filament
    Tungsten
  • Exposed Materials
    304 stainless steel, alumina, tantalum, tungsten, CuAg eutectic, Kovar®
  • Bake Out Temperature
    200°C max.
  • Internal Volume
    10.8 cm3 (0.66 in3) to port screen
  • X-ray Limit
    <3 x 10-10 Torr, <4 x 10-10 mbar, <4 x 10-8 Pa

Technical Specs

  • Type
    Vacuum Gauge
  • Sensor Type
    Bayard-Alpert Hot Cathode
  • Measurement Range
    5 x 10-10 to 5 x 10-2 Torr
  • Fitting Type
    18 mm Tube
  • Filament
    Tungsten
  • Exposed Materials
    304 stainless steel, alumina, tantalum, tungsten, CuAg eutectic, Kovar®
  • Bake Out Temperature
    200°C max.
  • Internal Volume
    10.8 cm3 (0.66 in3) to port screen
  • X-ray Limit
    <3 x 10-10 Torr, <4 x 10-10 mbar, <4 x 10-8 Pa
