Analog Output Module, 4-20 mA, 2 ft. Cable
Model: 1017474-001
Analog Output Module, 4-20 mA, 2 ft. Cable
Analog Output Module, 4-20 mA, 2 ft. Cable
Model: 1017474-001
Overview
Overview

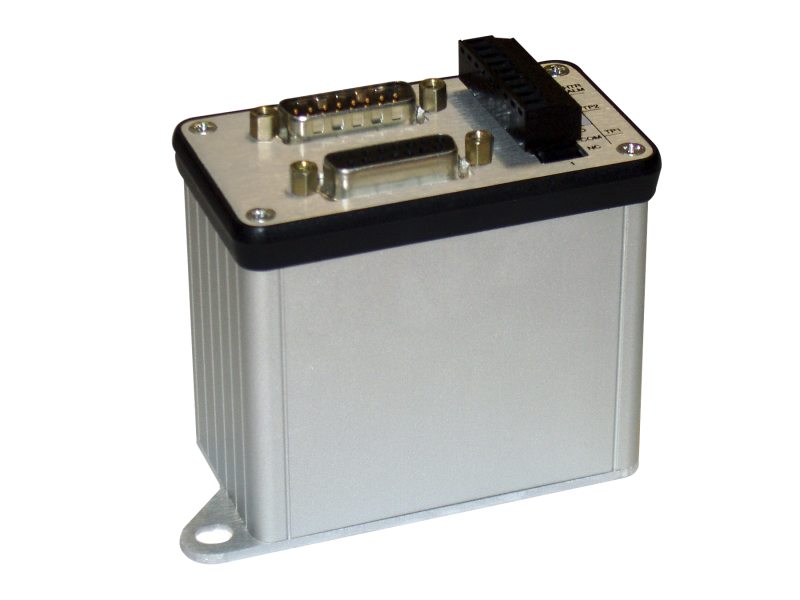

The 1017474-001 4-20 mA Output Module extends Baratron® Capacitance Manometer capabilities into applications that require a linear 4-20 mA analog output signal of the vacuum level in the process chamber. It emulates the 4-20 mA analog output of earlier Baratron® products and has two output connectors - one for both 0-10VDC and 4-20 mA output signals for the user, and the second for access to pressure setpoint relays (if so equipped). It comes with a 2 ft. cable
Technical Specs
-
TypeOutput Module
-
Channels1
-
Output Power24 Volts @ 1 Amp
-
Output Signal0 - 10 VDC into 10 kOhm load, and 4-20 mA. Both outputs linear with pressure.
-
InterfaceRS232
-
ConnectorsSystem connector: 15-pin male D-subminiature. Trip relays: 9 - post terminal strip. Baratron: 15-pin female D-subminiature receptacle.
-
UseMKS single - range Baratron capacitance manometers with 15-pin D-subminiature electrical connector and 0 - 10 VDC analog output, and competitive products with the same pin assignments and output.
-
MemoryNon - volatile memory
-
Resolution2 ft.
-
Dimensions4.07 x 1.69 x 3.15 in. (103.4 x 42.9 x 80.0 mm) (width x depth x height)
Resources & Downloads
Drawings & CADs
- 4-20 mA Output Module Dimensional Drawing (53.7 kB, PDF)
