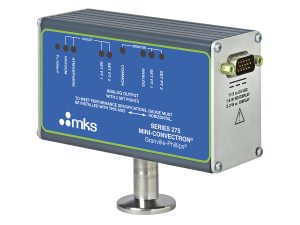

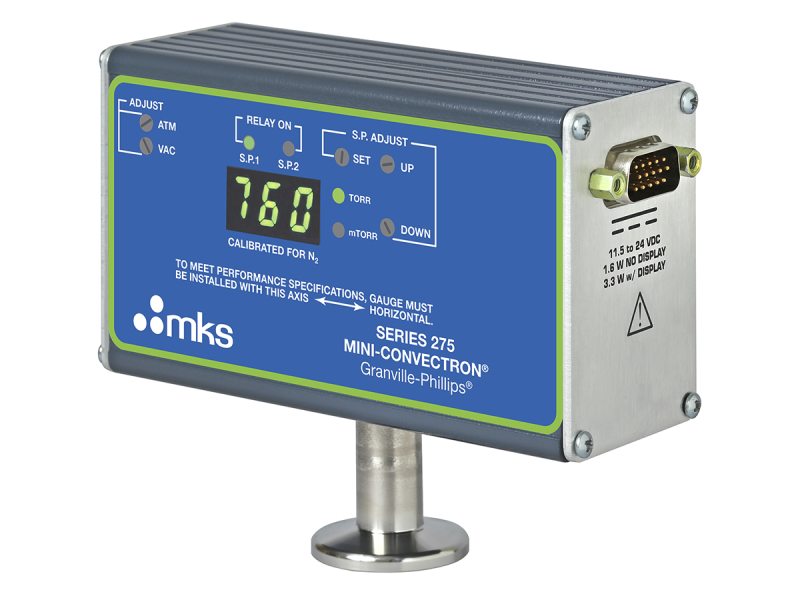

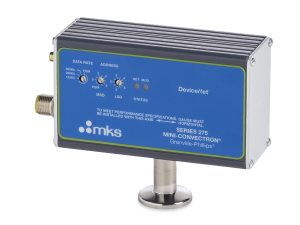

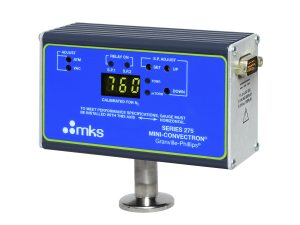

275 Mini-Convectron® Vacuum Transducers
Model: 275-mini-convectron-module
275 Mini-Convectron® Vacuum Transducers
Model: 275-mini-convectron-module
Technical Specs
Digital Communication
RS485 or DeviceNet™
Sensor
Gold-plated tungsten or Platinum
Display
3-digit green LED, automatic ranging (optional)
Installation Orientation
Horizontal preferred
Measurement Range
1x10-4 to 1000 Torr
1x10-4 to 1300 mbar
1x10-2 Pa to 130 kPa
for Air and N2
Operating Temperature
0-40°C
Maximum Bakeout Temperature
150°C maximum, non-operating, with electronics removed
Analog Output
0.375-5.659 VDC for 0 to 1000 Torr of N2, non-linear
Internal Volume
40 cc
Electronic Casing and Flange
Aluminum extrusion
Weight
340 gm (12oz) with 1/8 NPT fitting
Compliance
CE
Display Resolution
Least significant digit on each range
Technical Specs
Digital Communication
RS485 or DeviceNet™
Sensor
Gold-plated tungsten or Platinum
Display
3-digit green LED, automatic ranging (optional)
Installation Orientation
Horizontal preferred
Measurement Range
1x10-4 to 1000 Torr
1x10-4 to 1300 mbar
1x10-2 Pa to 130 kPa
for Air and N2
Operating Temperature
0-40°C
Maximum Bakeout Temperature
150°C maximum, non-operating, with electronics removed
Analog Output
0.375-5.659 VDC for 0 to 1000 Torr of N2, non-linear
Internal Volume
40 cc
Electronic Casing and Flange
Aluminum extrusion
Weight
340 gm (12oz) with 1/8 NPT fitting
Compliance
CE
Display Resolution
Least significant digit on each range
