Sorry, this family of products is no longer available.
Digital Input/Output Modules
Digital Input/Output Modules
This product is no longer available. Contact MKS Applications Support for more information.

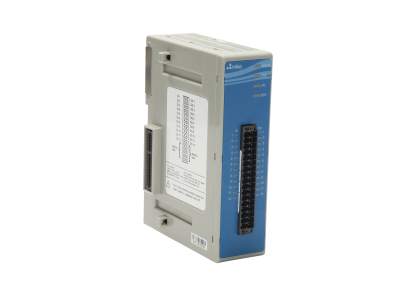

MKS digital input/output modules provide a compact and high density solution for integrating digital input and output channels with MKS PAC or CM modules. Each DIO module supports 12 digital inputs and 12 digital outputs.
Specifications
- TypeDigital Input/Output Module
- Number of Inputs12
- Input TypeSink or Source
- Number of Outputs12
- Power Consumption@ 200mA ≥ 24V_IO@ 2.5Amp, 24V_CORE@ 0.15Amp (per module) Assuming all DOs are loaded
- Input Isolation2.5 kVrms
- DI refresh rate10µs or 1ms
- Debounce FilterFixed to 4 cycles of DI Refresh Rate (10.8 µsec)
- Logic Level24 VDC (8VDC - 30 VDC)
- Maximum update rate25 µSec
- Output TypeOpen collector sink/source
- ProtectionESD to IEC 1000-4-2 ±4kV contact, DC + 5% (each channel)
- Pull Up/Down Value22K
- Sink Input Logic Level24VDC ±5%
- Sink Input Nominal Load Impedance6 kOhm
- Sink Input Current, Maximum OFF2.25mA (10.7 V)
- Sink Input Current, Minimum ON3.3mA (4.5 V)
- Sink Input Current, Maximum ON4.7mA
- Sink Output Maximum thermal current limit (ON)2A per bank of 6
- Sink Output Maximum Available Current Sink (ON)200mA
- Sink Output Maximum Leakage Current (OFF)0.1mA (output tied to 24v)
- Sink Output Maximum Voltage Drop (ON)Maximum 1.1v @ 200mA
- Sink Output Minimum Thermal Current Limit (ON)1A per bank of 6
- Sink Output Maximum Inductive Load Energy, 1Hz Cycled60mJ
- Source Input Logic level24v
- Source Input High Voltage Range OFF12.8V (2.15 mA)
- Source Input Low Voltage Range ON15V (2.5 mA)
- Source Input Input Current, Maximum ON4.7mA
- Source Input Nominal Load Impedance6 kOhm
- Source Output Maximum Available Current Source (ON)200mA
- Source Output Maximum Thermal Current Limit (ON)2A per bank of 6
- Source Output Maximum Leakage Current (OFF)0.1mA (output tied to ground)
- Source Output Minimum Thermal Current Limit (ON)1A per bank of 6
- Source Output Output High VoltageMinimum 23.7V @ 200mA
- Source Output Maximum Inductive Load Energy, 1Hz Cycled60mJ
- Operating Temperature0 to 55°C, with 2°C upper limit reduction per 1000 ft above sea level
- Storage Temperature-40°C to 85°C
- Altitude0-10,000 ft above sea level
- Humidity5-85% non-condensing
- Dimensions35 x 125 x 92.3 mm (1.4 x 3.3 x 4.9 inches) (W x H x D)
- MountingDIN rail
Resources
Drawings & CADs
MKS DIO Digital Input/Output Module Model File(40.3 MB, STEP)
