Analog Input/Output Modules
Analog Input/Output Modules
This product is no longer available. Contact MKS Applications Support for more information.

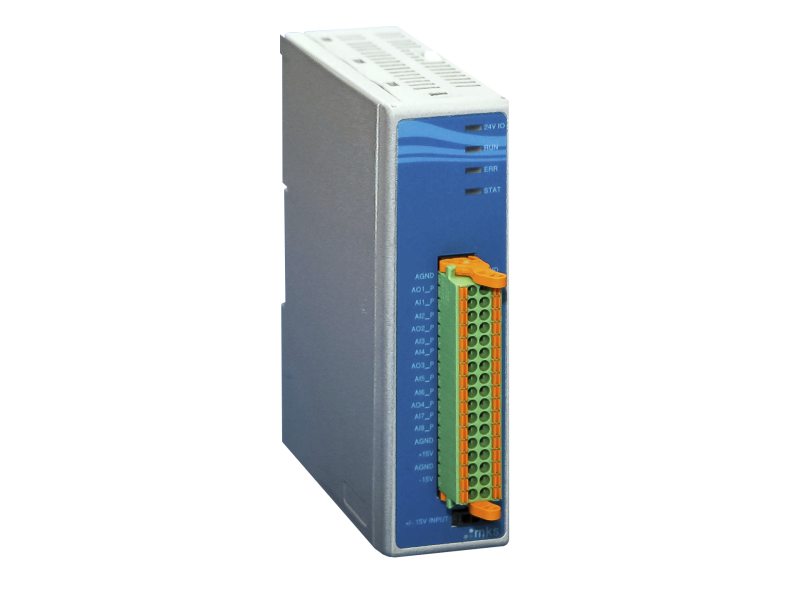

MKS Analog Input/Output Modules are a compact and high density solution for integrating analog input and output channels with MKS Automation Platform PAC or CM modules. AIO modules support a variety output and output ranges, to interface any type of analog I/O with the MKS platform. Each AIO module supports 8 analog inputs and 4 analog outputs.
Specifications
- TypeAnalog Input/Output Module
- ADC Native Resolution16-bits
(irrespective of the range user selects) - Number of Inputs8 (differential only)
- Number of Outputs4, differential or single ended (configured by the user)
- Minimum Precision14 noise-free bits for 95% of readings over full voltage range
- Input & Output RangesVoltage: 0-5V, 0-10V , ±5V, ±10V
Current: 0-20ma , 4-20ma
(Factory configurable between voltage and current) - Output Voltage Range-10V to 9.9997V
- Anti-alias HW Filtering200Hz ±20%, 6dB/octave minimum
- Input Voltage-10V to +9.9997V
- DAC Native Resolution16-bits
- Analog Input Minimum Input CMRR50dB, 0-1kHz
- Analog Input Sampling Rate6.25 kHz (160 µSec, for all 8 channels)
- Analog Output Output Accuracy at 25°C Ambient±1.2mV measured at I/O connector with 2 kOhm load
- Analog Output Output Accuracy Temp Drift0.02% of output value (20 - 35°C)
- Maximum Output Current5mA, into a 2 kOhm, 10 nF load
- Minimum Common Mode Voltage Range±8V
- Minimum Input Impedance10 milliohms
- Maximum Power Consumption per ModuleAssuming all AOs are current outputs @20mA ≥24V_IO@ 0.25Amp, 24V_CORE@ 0.15Amp
- Pull Down Resistors on + and - Inputs10 milliohms to Ground
- ProtectionESD to IEC 61000-4-2 ±4kV contact, short to 24V, +15V, or -15V
- Operating Temperature0° to +55°C
- Storage Temperature-40 to 85°C
- AltitudeUp to 2000 meters
- Humidity5 to 95% non-condensing
- Dimensions35 x 125 x 92.3 mm (1.4 x 3.3 x 4.9 inches) (W x H x D)
- MountingDIN rail
- ComplianceRoHs, CE
Resources
Drawings & CADs
MKS AIO Analog Input/Output Module Model File(37.8 MB, STEP)
