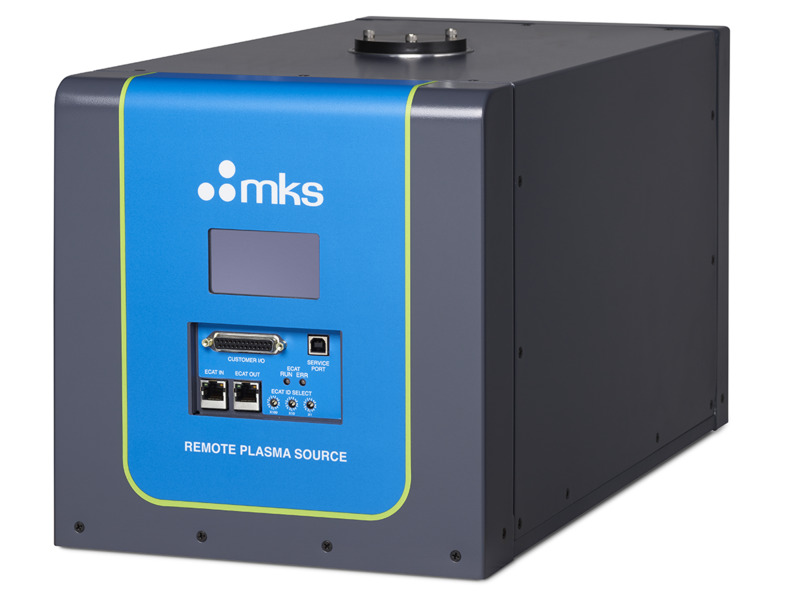

RPS-CM12P1 Remote Plasma Source for ALD, CVD and PVD Chambers
Model: RPS-CM12P1-P12C
RPS-CM12P1 Remote Plasma Source for ALD, CVD and PVD Chambers
Model: RPS-CM12P1-P12C

Overview
Overview
The RPS-CM12P1, 12 kW remote plasma source provides for radical enhanced deposition or selective etch pre-clean processes in Atomic Layer Deposition (ALD), Chemical Vapor Deposition (CVD), or Physical Vapor Deposition (PVD) processes. In chamber clean applications, the RPS-CM12P1 has an increased power range and process gas flow capacity to shorten chamber clean times while maintaining the same footprint as the previous generation remote plasma source Paragon® product.
Technical Specs
- TypeRPS-CM12P1 Remote Plasma Source
- Power Output12 kW, 3 phase 50/60 Hz, 40 Amps RMS max phase
- RF Frequency400 kHz
- Accuracy±1% to power set point
- Gas Supply During IgnitionAr
- NF3 Process Gas1-12 slm, 1-10 T
- NF3 Operation Reactant Output1-12 slm
- Mixed Species Space30-60 slm
- THD>15%
- Inlet Gas ConnectionKF40
- Outlet Gas ConnectionKF50 or KF40
- Control InterfaceAnalog: DB25
Digital: EtherCAT - Dimensions18.4 x 9.5 x 10.5 in. (46.73 x 24.13 x 26.67cm)
- Weight73 lbs. (33.11 kg)
- ComplianceSEMI F47
Technical Specs
- TypeRPS-CM12P1 Remote Plasma Source
- Power Output12 kW, 3 phase 50/60 Hz, 40 Amps RMS max phase
- RF Frequency400 kHz
- Accuracy±1% to power set point
- Gas Supply During IgnitionAr
- NF3 Process Gas1-12 slm, 1-10 T
- NF3 Operation Reactant Output1-12 slm
- Mixed Species Space30-60 slm
- THD>15%
- Inlet Gas ConnectionKF40
- Outlet Gas ConnectionKF50 or KF40
- Control InterfaceAnalog: DB25
Digital: EtherCAT - Dimensions18.4 x 9.5 x 10.5 in. (46.73 x 24.13 x 26.67cm)
- Weight73 lbs. (33.11 kg)
- ComplianceSEMI F47
Resources & Downloads
Drawings & CADs
RPS-CM12P1 Remote Plasma Source Dimensional Drawing(218.3 kB, PDF)
