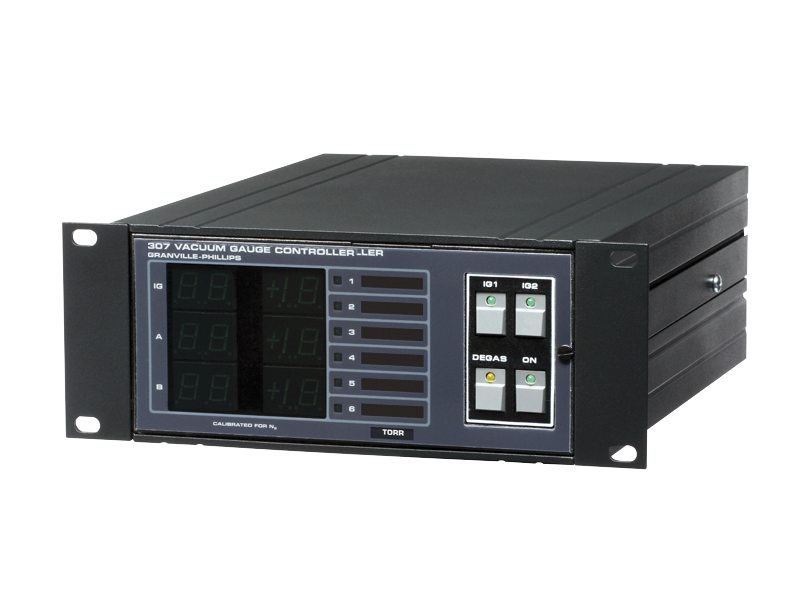

Vacuum Gauge Controller, Half Mount, Resistive Degas, RS485, 2 Relays, Torr, 120V US Cord
Model: 307501-B0A-T1
Vacuum Gauge Controller, Half Mount, Resistive Degas, RS485, 2 Relays, Torr, 120V US Cord
Vacuum Gauge Controller, Half Mount, Resistive Degas, RS485, 2 Relays, Torr, 120V US Cord
Model: 307501-B0A-T1
Overview
Overview
The 307501-B0A-T1 Vacuum Gauge Controller is configured for Series 274 glass tubulated or nude (not UHV) Bayard-Alpert gauges with resistive degas and comes with a half rack mount and remote power supply. It displays Torr measurement units, and is powered by 120 VAC with a US power cord. A RS-485 interface card in Slot X allows for pressure data output and set point status and provides remote ON/OFF control. Two set point relays for ion gauge are included. Series 307 controllers measure pressure, and utilizes pressure related outputs to control a variety of vacuum system functions and processes.
Technical Specs
-
TypeVacuum Gauge Controller
-
Measurement Range7 decades within above limits for given emission setting and tube sensitivity
-
Lower Measurement Limit1 x 10-10 Torr with 10 mA emission and tube sensitivity of 10/Torr
-
Upper Measurement Limit2 x 10-2 Torr with 0.1 mA emission and tube sensitivity of 10/Torr
-
DisplayDigital (green LED)
-
Display Update Rate0.5 second typical
-
UnitsTorr
-
Compatible with274 Ionization Gauge
-
Electrical PlugNorth America & Japan 120 VAC
-
Power Requirements100/115/230 ±10% VAC, 250 Watts, 50 or 60 Hz
-
InterfaceRS485
-
Relays2
-
Emission CurrentControlled, adjustable from 0.01 to 10.0 mA
-
DegasElectron Bombardment: 10 - 40 Watts adjustable, resistive (I2 R): 8 Volts nominal, (fixed) 80 Watts maximum
-
Operating Temperature40°C maximum, ambient
-
MountingRemote power supply
-
OutputLogarithmic: 1 volt/decade, 0 - 10 VDC, analog
-
Lower Measurement Limit with UHV2 x 10-11 Torr with 10 mA emission and tube sensitivity of 25/Torr
Resources & Downloads
Literature
- 307 Bayard-Alpert Gauge Controller (300 kB, PDF)
