Metal Wall Vacuum Hose, NW16 ISO-KF, 612 mm Length, 0.15 mm Hose Wall
Model: 100319808
Metal Wall Vacuum Hose, NW16 ISO-KF, 612 mm Length, 0.15 mm Hose Wall
Model: 100319808
Overview
Overview

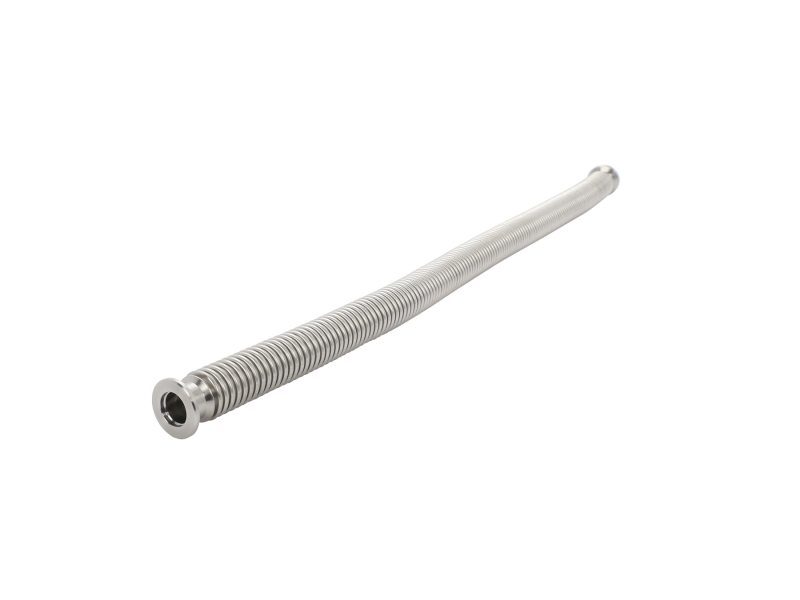

The 100319808 Thin Metal Wall Vacuum Hose is 24.09 inch (612 mm) in length with size NW16 ISO-KF vacuum flanges on each end. This unsheathed vacuum hose has a thin 0.06 in. (0.15 mm) stainless steel hose wall with a 1 5/8 inch static bend radius and can be compressed to a 18.12 in. (460 mm) length. Series 31 thin stainless steel wall vacuum hose can be used in rough piping applications.
Technical Specs
- Component TypeMetal Wall Vacuum Hose
- SeriesSeries 31
- MaterialStainless Steel
- Flange TypeISO-KF
- Flange SizeNW16
- Wall Thickness0.006 in. (0.15 mm)
- Free Length24.09 in. (612 mm)
- Compressed Length18.12 in. (460 mm)
- Static Bend Radius1.625 in.
- Spring Rate9 lb/in.
- Dimension "A"24.09 in.
- Dimension "B"18.12 in.
