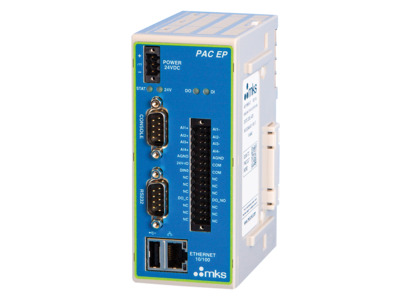

PAC Endpoint I/O

Device: 24VDC, ±10%, 0.5A(max), 0.3A(typical)
AIO Power: Internally powered. No external power required.

Power: 3 pin with polarity and locking (mating connector provided)
I/O: D-sub 50 pin female
Network: 10/100BaseT, RJ45 connector

Number of DI: 1, Active low, internal pull-up to 24VDC
Max DI Current: 30 mA
Number of DO: 1, Dry contact relay, 1A max

Number of Inputs: 4 Differential analog inputs
Input Range: 0 to +10V
Resolution: 16-bit
Filtering: 200Hz ±20%, 6dB/octave Min
Impedance: 10 MΩ

Number of Outputs: 0

Ethernet

Network: Status LEDs on RJ45
System Status: System Ready(green), 24VDC Health (Green)
Digital Input/Output Points: DO On/Off Status(Green), DI On/Off Status(Green)

0-50°C

-40 to 85°C

5-85% non-condensing

4.921 x 2.066 x 3.633 in. (125 x 52.5 x 92.3 mm)

0.661 lb (300 g)
