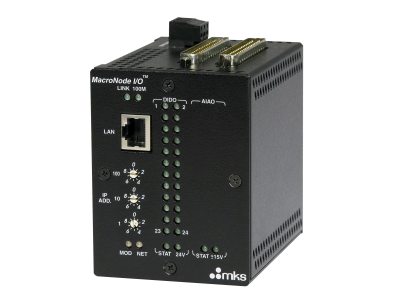

Compact Networked I/O

Ethernet - Modbus/TCP or Ethernet/IP; EtherCAT; DeviceNet

I/O: 37-pin male D-sub
Ethernet: 100 BaseT, RJ45 with EMI filter or fiber optic connector
RS232: TxD, RxD; DB9 connector

Choke Filtering

Powered from I/O connector +24 VDC@120 mA

Input:
16 single-ended points (8 in differential mode)
14 bit
Range (-10 to +10V)
Output:
8 single-ended points
12 bit
Range (-10 to +10V)
5mA/channel into a 2 kOhm load

Number of I/O: 24 points (input or output)
Input
Current Sinking: Active low - 1.5 mA min
Current Sourcing: Active high - 1.5 mA min
Output
Current Sinking: Active low, 200 mA max/channel
Current Sourcing: Active high, 200 mA max/channel
Current Max: 750 mA per 6 DO

Number of Digital I/O: 16 points (input or output)
Digital Input:
Current Sinking: Active low - 1.5 mA min Current Sourcing: Active high - 1.5 mA min
Digital Output:
Current Sinking: Active low, 200 mA max/channel Current Sourcing: Active high, 200 mA max/channel Current Max: 750 mA per 6 DO
Analog Input:
8 single-ended points (4 in differential mode)
14 bit
Range (-10 to +10V)
Analog Output:
2 differential points
12 bit
Range (-10 to +10V)
5mA/channel into a 2 kOhm load

Network Status, Module Status, LINK, 100MB

IP address, operating mode (MacID and Rate for DeviceNet models)

0 - 55°C

-40 to 85°C

5 to 95% non-condensing

600g (1.32 lb)

4 x 4 x 1.5 inches plus 0.7 inches per I/O slot
