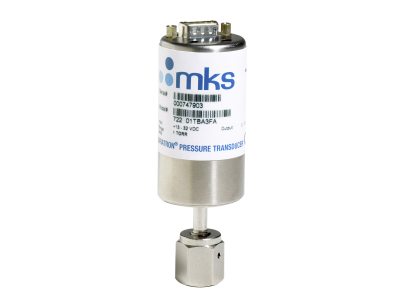

722B 1-25,000 Torr, General Purpose Absolute Baratron® Capacitance Manometer
Model: 722b-compact-absolute-capacitance-manometers
722B 1-25,000 Torr, General Purpose Absolute Baratron® Capacitance Manometer
Model: 722b-compact-absolute-capacitance-manometers
Overview
Overview
Technical Specs
- TypeBaratron® Pressure Transducer
- Measurement TypeAbsolute
- Full Scale Pressure Ranges1 Torr through 25,000 Torr (mmHg) (0.02 psia through 500 psia)
- Output0 to 5 VDC or 0 to 10 VDC into >10 kΩ load
- Accuracy0.5% of Reading
- Zero Temperature Coefficient0.008% of Full Scale/°C (10 Torr through 25,000 Torr)
0.020% of Full Scale (1 and 2 Torr) - Span Temperature Coefficient0.04% of Reading/°C
- Operating Temperature0 to 50°C
15° to 40°C (1 and 2 Torr only) - Overpressure Limit45 psia or 2x Full Scale, whichever is greater
- Burst Pressure10x Full Scale or 100 psi, whichever is greater
- Materials Exposed to Process GasesInconel®
- ComplianceFully CE Compliant to EMC Directive 2004/108/EC1
Fully compliant to RoHS Directive 2002-95-EC
Technical Specs
- TypeBaratron® Pressure Transducer
- Measurement TypeAbsolute
- Full Scale Pressure Ranges1 Torr through 25,000 Torr (mmHg) (0.02 psia through 500 psia)
- Output0 to 5 VDC or 0 to 10 VDC into >10 kΩ load
- Accuracy0.5% of Reading
- Zero Temperature Coefficient0.008% of Full Scale/°C (10 Torr through 25,000 Torr)
0.020% of Full Scale (1 and 2 Torr) - Span Temperature Coefficient0.04% of Reading/°C
- Operating Temperature0 to 50°C
15° to 40°C (1 and 2 Torr only) - Overpressure Limit45 psia or 2x Full Scale, whichever is greater
- Burst Pressure10x Full Scale or 100 psi, whichever is greater
- Materials Exposed to Process GasesInconel®
- ComplianceFully CE Compliant to EMC Directive 2004/108/EC1
Fully compliant to RoHS Directive 2002-95-EC
Resources & Downloads
Literature
722B Baratron® Capacitance Manometer (archive)(349.7 kB, PDF)
Drawings & CADs
722 Baratron® Capacitance Manometer Dimensional Drawing(68.6 kB, PDF)
Manuals
722A Baratron® Compact Absolute Capacitance Manometer Manual(589.8 kB, PDF) 722B Baratron® Compact Capacitance Manometer Manual (1034138-001)(680.9 kB, PDF) 722 Capacitance Manometer Pin-outs(20.5 kB, PDF)
