148J All-metal Flow Control Valve

Model: 148j-flow-control-valve

148J All-metal Flow Control Valve

Model: 148j-flow-control-valve

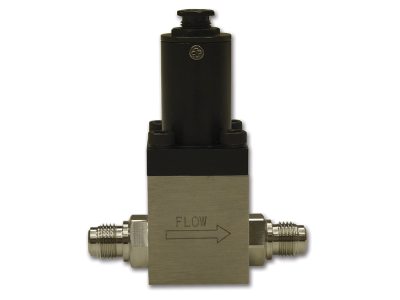

148j all-metal flow control valve

Technical Specs

  • Type
    148J All-metal Flow Control Valve
  • Full Scale Flow Range
    10 - 30,000 sccm
  • Minimum Controllable Flow
    2% Full Scale
  • Closed Conductance Leakage
    <1% Full Scale (15 psid to atm)
  • Exposed Materials
    316 S.S, Nickel, Elgiloy, KM45, Teflon
  • Seal Material
    Metal
  • Fitting Type
    4 VCR® male compatible
  • Operating Temperature
    10-60°C
  • Compliance
    CE
    (For CE compliance an overall metal braided shielded cable, properly grounded at both ends, must be used.)

Technical Specs

  • Type
    148J All-metal Flow Control Valve
  • Full Scale Flow Range
    10 - 30,000 sccm
  • Minimum Controllable Flow
    2% Full Scale
  • Closed Conductance Leakage
    <1% Full Scale (15 psid to atm)
  • Exposed Materials
    316 S.S, Nickel, Elgiloy, KM45, Teflon
  • Seal Material
    Metal
  • Fitting Type
    4 VCR® male compatible
  • Operating Temperature
    10-60°C
  • Compliance
    CE
    (For CE compliance an overall metal braided shielded cable, properly grounded at both ends, must be used.)
