Metal Wall Vacuum Hose, NW50 ISO-KF, 303 mm Length, 0.15 mm Hose Wall
Model: 100319817
Metal Wall Vacuum Hose, NW50 ISO-KF, 303 mm Length, 0.15 mm Hose Wall
Model: 100319817
Overview
Overview

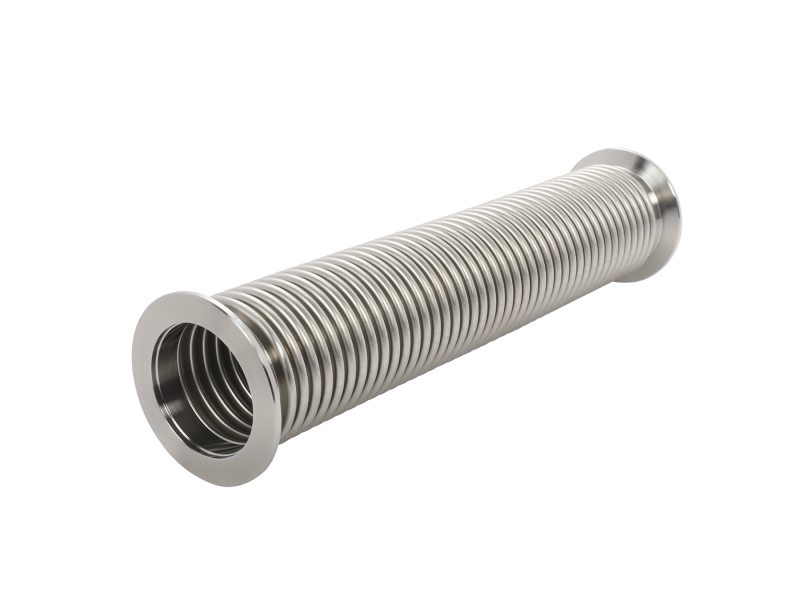

The 100319817 Thin Metal Wall Vacuum Hose is 11.93 inch (303 mm) in length with size NW50 ISO-KF vacuum flanges on each end. This unsheathed vacuum hose has a thin 0.06 in. (0.15 mm) stainless steel hose wall with a 3 1/4 inch static bend radius and can be compressed to a 8.64 in. (219 mm) length. Series 31 thin stainless steel wall vacuum hose can be used in rough piping applications.
Technical Specs
- Component TypeMetal Wall Vacuum Hose
- SeriesSeries 31
- MaterialStainless Steel
- Flange TypeISO-KF
- Flange SizeNW50
- Wall Thickness0.006 in. (0.15 mm)
- Free Length11.93 in. (303 mm)
- Compressed Length8.64 in. (219 mm)
- Static Bend Radius3.25 in.
- Spring Rate12 lb/in.
- Dimension "A"11.93 in.
- Dimension "B"8.64 in.
