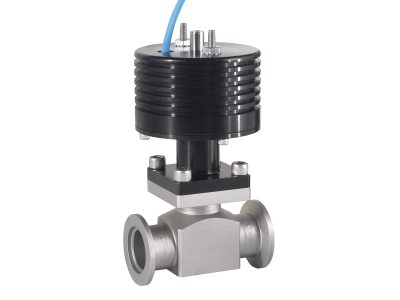

ECv Electric Bellows Vacuum Isolation Valves
Model: ecv-isolation-valves
ECv Electric Bellows Vacuum Isolation Valves
Model: ecv-isolation-valves
Technical Specs
Type
ECv Electromagnetic Compact Vacuum Isolation Valve
Vacuum Range
Atmosphere to below 10-9 Torr
Helium Leak Rate
Less than 1.0 x 10-9 std cc/sec
Wetted Volume
Approximately 1.09 in3 (17.8 cm3 ), depending on configuration
Voltage Requirements
12 VDC, 24 VDC
Amperage Requirements
12 VDC: 2.6 A (initial), 0.6 A (running)
24 VDC: 1.3 A (initial), 0.3 A (running)
Limit Switch Rating
5 A - 115 VAC
.5 A - 24 VDC
Solenoid Voltage
32 W (initial), 7 W (running)
Blow-By Pressure
N/C 35 psi
N/O 50 psi
Actuation Time
60 msec
Maximum Bakeout Temperature
150°C (with solenoid coil removed)
Orientation
Seals against atm at either port
Maximum Operating Temperature
-26 to 60°C
Typical Life
1,000,000 cycles
Compliance
CE
