  5. E27F 0.02-100 Torr Heated (45°C) Baratron® Capacitance Manometers with Etch Sensor

Sorry, this product is no longer offered for sale. The recommended replacement product is e27h-heated-capacitance-manometers-etch-sensor.

E27F 0.02-100 Torr Heated (45°C) Baratron® Capacitance Manometers with Etch Sensor

Model: e27f-heated-capacitance-manometers-etch-sensor

E27F 0.02-100 Torr Heated (45°C) Baratron® Capacitance Manometers with Etch Sensor

Model: e27f-heated-capacitance-manometers-etch-sensor

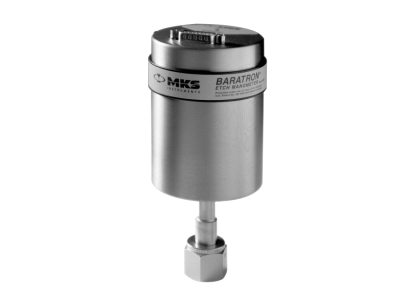

e27f/e28f baratron heated capacitance manometer with etch sensor

Technical Specs

  • Type
    Vacuum Pressure Transducer
  • Sensor Type
    Capacitance Manometer with Etch Baffle Sensor
  • Measurement Type
    Absolute
  • Sensor Temperature
    Controlled to 45°C
  • Full Scale Pressure Ranges
    0.02, 0.05, 0.1, 0.25, 1, 2, 10, 20, and 100 Torr
  • Accuracy
    0.12% of Reading
    0.15% for 0.25, 0.1, and 0.05 Torr
    0.25% for 0.02 Torr
  • Analog Output
    0 - 10 VDC into >10K Ω load
  • Analog Connector
    15-pin D-sub
  • Zero Temperature Coefficient
    0.002% of Full Scale/°C for 1-100 Torr ranges
    0.005% Full Scale /°C for 0.25 and 0.1 Torr
    0.015% Full Scale /°C for 0.05 Torr
    0.03% Full Scale /°C for 0.02 Torr
  • Span Temperature Coefficient
    0.02% of Reading/°C
  • Operating Temperature Range
    15° to 40°C
  • Volume
    6.3 cc
  • Warm-up Time
    hours for 1 Torr and higher, 4 hours for <1 Torr
  • Overpressure Limit
    45 psia (310 kPa) or 120% Full Scale , whichever is greater
  • Materials Exposed to Process Gases
    Inconel®
  • Power Requirements
    ±15 VDC ±5% @ 0.25 Amps (maximum)
  • Compliance
    CE

Technical Specs

  • Type
    Vacuum Pressure Transducer
  • Sensor Type
    Capacitance Manometer with Etch Baffle Sensor
  • Measurement Type
    Absolute
  • Sensor Temperature
    Controlled to 45°C
  • Full Scale Pressure Ranges
    0.02, 0.05, 0.1, 0.25, 1, 2, 10, 20, and 100 Torr
  • Accuracy
    0.12% of Reading
    0.15% for 0.25, 0.1, and 0.05 Torr
    0.25% for 0.02 Torr
  • Analog Output
    0 - 10 VDC into >10K Ω load
  • Analog Connector
    15-pin D-sub
  • Zero Temperature Coefficient
    0.002% of Full Scale/°C for 1-100 Torr ranges
    0.005% Full Scale /°C for 0.25 and 0.1 Torr
    0.015% Full Scale /°C for 0.05 Torr
    0.03% Full Scale /°C for 0.02 Torr
  • Span Temperature Coefficient
    0.02% of Reading/°C
  • Operating Temperature Range
    15° to 40°C
  • Volume
    6.3 cc
  • Warm-up Time
    hours for 1 Torr and higher, 4 hours for <1 Torr
  • Overpressure Limit
    45 psia (310 kPa) or 120% Full Scale , whichever is greater
  • Materials Exposed to Process Gases
    Inconel®
  • Power Requirements
    ±15 VDC ±5% @ 0.25 Amps (maximum)
  • Compliance
    CE
