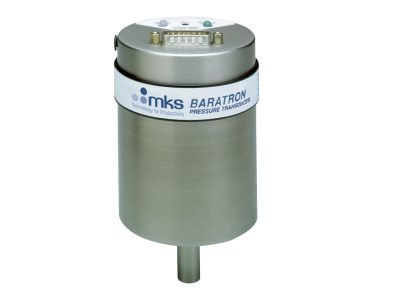

D24F 10-1000 Torr Heated (45°C) Baratron® Dual-Range Capacitance Manometer with Trip Points

Model: d24f-heated-dual-range-absolute-capacitance-manometers

Type
Pressure Transducer
Sensor Type
Dual-Range Capacitance Manometer
Measurement Type
Absolute
Sensor Temperature
Controlled to 45°C
Full Scale Pressure Ranges
10, 100, 1000 Torr
Accuracy
0.12% of Reading
Resolution
0.001% of Full Scale
Analog Output
0 to 10 VDC into > 10K Ω load
Second Output: 0-10 VDC into > 10K Ω load over lower range
Analog Connector
15-pin D-subminiture
Zero Temperature Coefficient
0.002% of Full Scale/°C
Span Temperature Coefficient
0.02% of Reading/°C

Operating Temperature Range
15° to 40°C
Volume
6.3 cc
Warm-up Time
2 hours
Overpressure Limit
45 psia (310 kPa)
Materials Exposed to Process Gases
Inconel®
Power Requirements
±15 VDC ±5% @ 0.40 Amps (max.)
Trip Point Level Signal
0.01 to 10 VDC for each trip point (first output only)
Relay Contact Ratings
SPDT, 1 Amp @ 30 VDC or 0.5 Amp @ 30 VAC resistive
Compliance
CE

Type
Pressure Transducer
Sensor Type
Dual-Range Capacitance Manometer
Measurement Type
Absolute
Sensor Temperature
Controlled to 45°C
Full Scale Pressure Ranges
10, 100, 1000 Torr
Accuracy
0.12% of Reading
Resolution
0.001% of Full Scale
Analog Output
0 to 10 VDC into > 10K Ω load
Second Output: 0-10 VDC into > 10K Ω load over lower range
Analog Connector
15-pin D-subminiture
Zero Temperature Coefficient
0.002% of Full Scale/°C
Span Temperature Coefficient
0.02% of Reading/°C

Operating Temperature Range
15° to 40°C
Volume
6.3 cc
Warm-up Time
2 hours
Overpressure Limit
45 psia (310 kPa)
Materials Exposed to Process Gases
Inconel®
Power Requirements
±15 VDC ±5% @ 0.40 Amps (max.)
Trip Point Level Signal
0.01 to 10 VDC for each trip point (first output only)
Relay Contact Ratings
SPDT, 1 Amp @ 30 VDC or 0.5 Amp @ 30 VAC resistive
Compliance
CE
