Sorry, this product is no longer offered for sale.
Ozone Sanitation Generator, 10 - 57 g/hr.
Model: EO3
Ozone Sanitation Generator, 10 - 57 g/hr.
Ozone Sanitation Generator, 10 - 57 g/hr.
Model: EO3
Overview
Overview

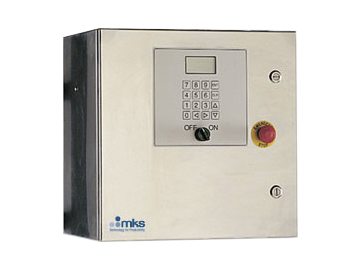

The EO3™ Ozone Sanitation Generators & Systems provide 0.5-3 pounds per day of ozone for sanitization needs. Designed specifically for challenging environments such as food & beverage and biopharmaceutical industries.
Technical Specs
-
TypeOzone Sanitation Generator
-
Ozone Output0.5 - 3 lbs/day (10 - 57 g/hr)
-
Ozone Concentration10 - 6%
-
Ozone Gas Piping Inlet Requirement0.25 inch MNPT
-
Oxygen Concentrator Drying Capability- 100°F dew point
-
Oxygen Concentrator Parent GasCompressed Air
-
Oxygen Concentrator Gas Output25 scfh at 90% oxygen weight conc.
-
Cooling Water Flow Required0.5 gpm (at 20 - 40 psig)
-
Cooling Water Temperature Required50 - 85°F (at or above ambient dew point)
-
Cooling Water Inlet/Outlet Requirement0.25 inch FNPT
-
Compressed Air Flow Requirement5.5 cfm at 45 psig (11 scfm)
-
Compressed Air Inlet Requirement0.5 inch FNPT
-
Gas Outlet Pressure4 - 15 psig
-
Air TubingPolypropylene
-
Water TubingPolypropylene
-
O2/O3 Gas TubingPTFE/304 Stainless Steel
-
Voltage Requirements208 - 240VAC
-
Current Requirements3.5 Amps Full Load
-
Frequency50/60 Hz
-
Phase1 - phase
-
Remote ReadyDry Contact
-
Remote Control4 - 20 mA 10 - 100% Output
-
Remote EnableDry Contact Close to Run
-
DisplayBacklit Graphic LCD Display
-
AlarmDry Contact Close Fault
-
Room Ozone AlarmDry Contact Close to Run
-
KeyboardSealed 16 Key Membrane
-
Frame Material304 Stainless Steel
-
Enclosure MaterialBrushed Stainless Steel
-
DimensionsGenerator: 18 x 18 x 13 in., System: 18 x 71 x 15 in. (width x height x depth)
-
Weight200 lbs
