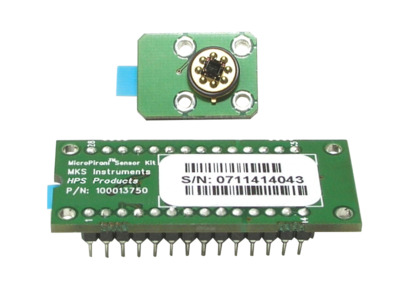

905 MicroPirani™ Vacuum Transducer Kit
Model: 905-micro-pirani-vacuum-sensor-kit
905 MicroPirani™ Vacuum Transducer Kit
Model: 905-micro-pirani-vacuum-sensor-kit
Technical Specs
Digital Communication
Serial UART, TTL level
Measurement Range
1 x 10-5 to 760 Torr
1 x 10-5 to 1000 mbar
1 x 10-3 to 1 × 10+5 Pascal
Operating Temperature
5° to 40°C (41° to 104°F)
Maximum Bakeout Temperature
130°C (266°F)
Storage Temperature
-10° to 55°C (14° to 131°F)
Analog Output
0.5 VDC - 4.5 VDC
Power Requirements
+5 VDC (±2%), 45 mA
MicroPirani Accuracy
5% (typical measuring accuracy from 1E-3 to 100 Torr Nitrogen pressure measured at 25°C)
Exposed Materials
Silicon, SiO2, SiN4, Epoxy, Gold
Weight
9 grams (Electronics Module)
Set Point Configuration
3 open collector outputs, 50 mA sink current
Units
Torr, mbar, Pascal
