690A Baratron® 0.1-25000 Torr 45°C Heated Reference Absolute Capacitance Manometers
Model: 690a-reference-absolute-capacitance-manometers

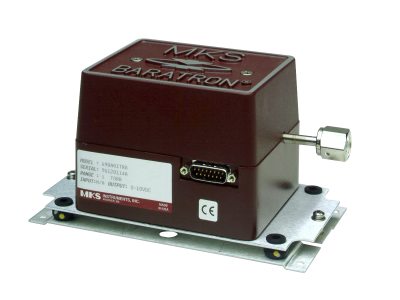

690A Baratron® 0.1-25000 Torr 45°C Heated Reference Absolute Capacitance Manometers
Model: 690a-reference-absolute-capacitance-manometers
Overview
Overview
Technical Specs
- TypePressure Transducer
- Sensor TypeReference Capacitance Manometer
- Measurement TypeAbsolute
- Sensor TemperatureControlled to 45° C
- Full Scale Pressure Ranges0.1, 1, 10, 100, 1000, 5000, 10000, 15000, 20000, 25000 Torr
- Fitting TypeSwagelok 4 VCR® female
- Accuracy0.05%, 0.08%, or 0.12% of Reading ±zero/span coefficient
- Resolution1x10-6 of Full Scale
- Materials Exposed to Process GasesInconel® and 304 stainless steel
- Volume≥1000 Torr versions: 2.5 cc
5000-25000 Torr versions: 14 cc
Technical Specs
- TypePressure Transducer
- Sensor TypeReference Capacitance Manometer
- Measurement TypeAbsolute
- Sensor TemperatureControlled to 45° C
- Full Scale Pressure Ranges0.1, 1, 10, 100, 1000, 5000, 10000, 15000, 20000, 25000 Torr
- Fitting TypeSwagelok 4 VCR® female
- Accuracy0.05%, 0.08%, or 0.12% of Reading ±zero/span coefficient
- Resolution1x10-6 of Full Scale
- Materials Exposed to Process GasesInconel® and 304 stainless steel
- Volume≥1000 Torr versions: 2.5 cc
5000-25000 Torr versions: 14 cc
Resources & Downloads
Manuals
690A, 698A Baratron® Heated Capacitance Manometer Manual(408.1 kB, PDF)
Drawings & CADs
690A Baratron® Capacitance Manometer Dimensional Drawing(92.6 kB, PDF)
Literature
Archive - 690 & 698 Pressure Sensor Data Sheet(218.8 kB, PDF)
