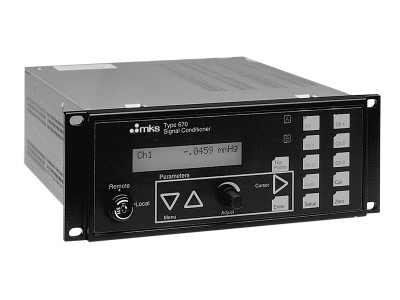

670C Power Supply and Display with Signal Conditioner
Model: 670C
670C Power Supply and Display with Signal Conditioner
Model: 670C
Technical Specs
Display
3½, 4½, or 5½ digits, 2-line LCD
Display Units
Torr, mTorr, mmHg, mbar, Pa, kPa, inHg, inH20, cmH20, psi, % of Full Scale, ppm of Full Scale (all user-selectable)
Number of Channels
1
Power Requirements
90-132 or 180-264 VAC, 50-60 Hz, 75 VA (max.) IEC-AC power line connector
Output Signal
0 to ±10 VDC on each range into >10K Ω load
Communication Protocol
RS232
Connectors
DB9 male
Trip Points
Two user configurable trip points with two LEDs on front panel indicate status of each relay
Trip Point Relay Ratings
24 VAC/DC @ 1 Amp resistive
For Use With
AA06A & AD06A sensors from 0.1 - 25,000 mmHg (Torr) Full Scale
also: 590, 615, 616, 690, 698 sensors
Ranges
x1, x0.1, x0.01 of sensor Full Scale, manual or auto-ranging
Data Averaging
0.1 - 10 sec (user-selectable)
Response Time
1, 40, or 400 msec (user-selectable)
Operating Temperature
15 - 40° C
Dimensions
88 mm x 240 mm x 234 mm
Compliance
CE
