622C 1-1000 Torr, Unheated Absolute Baratron® Capacitance Manometers
622C 1-1000 Torr, Unheated Absolute Baratron® Capacitance Manometers

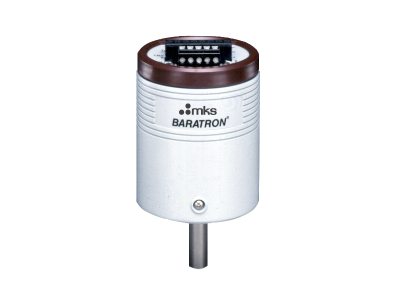

The Baratron® 622C unheated absolute capacitance manometer requires ±15VDC input voltage and provides a high-level 0-10 VDC analog output signal that is linear with pressure.
Specifications
- TypePressure Transducer
- Sensor TypeCapacitance Manometer
- Measurement TypeAbsolute
- Full Scale Pressure Ranges1, 2, 10, 20, 100, 500, or 1000 Torr and metric equivalents
- Sensor TemperatureAmbient
- Analog Output0 - 10 VDC into > 10 kΩ load
- Accuracy0.25% of Reading for 1 to 1000 Torr
- Electrical Connector5-pin Terminal Block
- Zero Temperature Coefficient0.005% FS/°C for 10-1000 Torr ranges
0.010% FS/°C for 2 Torr range
0.015% FS/°C for 1 Torr range
- Span Temperature Coefficient0.04% of Reading/°C
- Operating Temperature Range0 to 50°C
- Resolution0.001% of Full Scale
- Volume6.3 cc
- Overpressure Limit45 psia (310 kPa)
- Materials Exposed to Process GasesInconel® and Incoloy® nickel alloys
- Power Requirements±15VDC (±5%) @ 35 mA
- ComplianceCE
