500 Cold Cathode Vacuum Transducers

Model: 500-cold-cathode-gauge-module

500 Cold Cathode Vacuum Transducers

Model: 500-cold-cathode-gauge-module

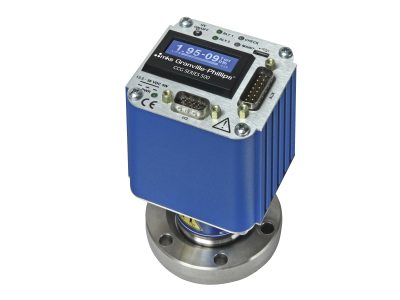

500 cold cathode vacuum transducer

Overview

Technical Specs

Technical Specs

Sensor
Cold Cathode
Installation Orientation
Any
Measurement Range
1 x 10^-10 to 1 x 10^-2 Torr
Operating Temperature
0 to 50°C
Maximum Bakeout Temperature
250°C (magnets removed)
Storage Temperature
-40° to 70°C
Analog Output
0-11 VDC (LOG10)
Power Requirements
13.5 - 36 VDC, <2 Watts
Accuracy
Calibrated Gauge: 10%
(1 x 10^-8 to 1 X 10^-4 Torr)

Repeatability
1 x 10^-8 to 1 X 10^-4 Torr: 5% (typical)
Exposed Materials
304 Stainless Steel, 17-7 stainless steel, ceramic, Cu brazing material, alumina, and molybdenum
Weight
652 grams
Compliance
CE
USB Port
Micro-AB
RS485 Baud Rates
1200-115,200 Baud

Technical Specs

Sensor
Cold Cathode
Installation Orientation
Any
Measurement Range
1 x 10^-10 to 1 x 10^-2 Torr
Operating Temperature
0 to 50°C
Maximum Bakeout Temperature
250°C (magnets removed)
Storage Temperature
-40° to 70°C
Analog Output
0-11 VDC (LOG10)
Power Requirements
13.5 - 36 VDC, <2 Watts
Accuracy
Calibrated Gauge: 10%
(1 x 10^-8 to 1 X 10^-4 Torr)

Repeatability
1 x 10^-8 to 1 X 10^-4 Torr: 5% (typical)
Exposed Materials
304 Stainless Steel, 17-7 stainless steel, ceramic, Cu brazing material, alumina, and molybdenum
Weight
652 grams
Compliance
CE
USB Port
Micro-AB
RS485 Baud Rates
1200-115,200 Baud
