41B Baratron® Single-End Gauge Pressure Switches

Model: 41b-single-end-pressure-switch

41B Baratron® Single-End Gauge Pressure Switches

Model: 41b-single-end-pressure-switch

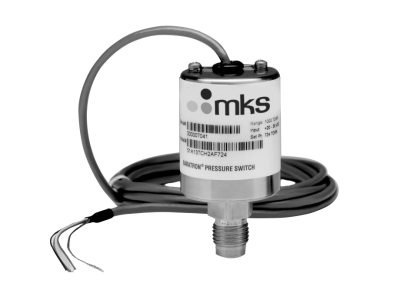

41b/51b baratron pressure switch

Overview

Technical Specs

Technical Specs

Type
Baratron® Vacuum Pressure Switch
Configuration
Single-Ended
Accuracy
±0.5% of Full Scale (± temperature coefficient)
Trip Point Range
5% to 100% of Full Scale
Trip Point Dead Band
±3% of Full Scale
Response Time
<20 msec
Internal Volume
3.3 cc
Temperature Coefficient
±0.07% of Full Scale/°C

Materials Exposed to Process Gases
Inconel and 316L stainless steel
Overpressure
2 x Full Scale or 45 psia, whichever is greater
Outputs
Electromechanical relay - SPDT (isolated) contacts rated up to 1 Amp @ 30 VDC resistive.
Power Requirements
20 - 30 VDC
Ambient Operating Temperature
0 - 50°C
Compliance
CE Compliant to EMC Directive 2004/108/EC

Technical Specs

Type
Baratron® Vacuum Pressure Switch
Configuration
Single-Ended
Accuracy
±0.5% of Full Scale (± temperature coefficient)
Trip Point Range
5% to 100% of Full Scale
Trip Point Dead Band
±3% of Full Scale
Response Time
<20 msec
Internal Volume
3.3 cc
Temperature Coefficient
±0.07% of Full Scale/°C

Materials Exposed to Process Gases
Inconel and 316L stainless steel
Overpressure
2 x Full Scale or 45 psia, whichever is greater
Outputs
Electromechanical relay - SPDT (isolated) contacts rated up to 1 Amp @ 30 VDC resistive.
Power Requirements
20 - 30 VDC
Ambient Operating Temperature
0 - 50°C
Compliance
CE Compliant to EMC Directive 2004/108/EC
