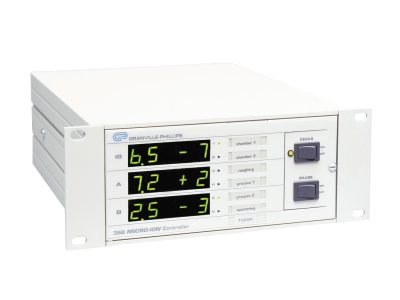

358 Micro-Ion® Vacuum Gauge Controller
Model: 358-micro-ion-vacuum-gauge-controller
358 Micro-Ion® Vacuum Gauge Controller
Model: 358-micro-ion-vacuum-gauge-controller
Technical Specs
Measurement Range
Torr: 5x10-10 to 5x10-2 (to 1000 Torr with Convectron option)
mbar: 6x10-10 to 7x10-2 (to 1300 mbar with Convectron option)
Pa: 6x10-8 to 7 (to 130 kPa with Convectron option)
(for air and N2)
Display
2 digits plus exponent, green LED
Display Update Rate
Every 0.5 sec
Power Requirements
100-240 Vac, 50-60 Hz, 50 W max
Communication Protocol
RS-232 or RS-485/422
Analog Output
Micro-Ion: 1 Volt/decade, logarithmic, 0 to 10 V
Set Point Contact Rating
5 A at 30 Vdc, 5 A at 120 Vac, 4 A at 240 Vac, resistive load
Set Point Configuration
Single-pole, double-throw (SPDT) relays
Emission Current
0.02, 1 or 4 mA, switch selectable
Degas
Electron bombardment, 4 W with 2-minute timer
Operating Temperature
0° to 40°C
Storage Temperature
-40° to 70°C
Case Materials
Aluminum extrusion
Filament Selections
Filament 1, filament 2 or both, switch selectable
Overpressure Protection
Ion gauge turns off at factory set upper pressure limit
Remote Input Signals
Gauge on/off and degas on/off, selected by momentary continuity to ground
Remote Output Signals
Gauge status indicated by a single-pole, double-throw relay rated at 1 A @ 30 VDC resistive, AC non-inductive
Connector
9-pin subminiature-D male
Weight
1.8 kg (4 lbs)
