Sorry, this product is no longer offered for sale. The recommended replacement product is aa04a-absolute-capacitance-manometers.

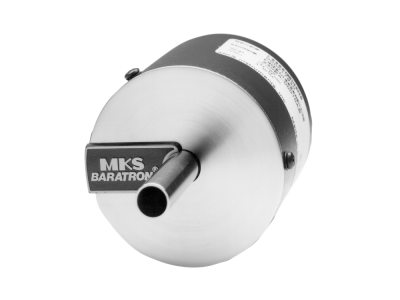

230E 10-25,000 Torr Baratron® Industrial Absolute Pressure Transmitters
230E 10-25,000 Torr Baratron® Industrial Absolute Pressure Transmitters
The 230E Baratron® Absolute Pressure Transmitter offers temperature compensation, a dual electrode design, and a higher operating temperature.
Specifications
- TypePressure Transmitter
- Sensor TypeIndustrial Capacitance Manometer
- Measurement TypeAbsolute
- Full Scale Pressure Ranges10, 100, 1000, 5000, 10000, 15000, 20000, or 25000 Torr
- AccuracyStandard: ±0.5% of Reading
Optional: ±0.3% of Reading - Analog OutputTwo-wire, 4-20 mA into 500 Ω load
- Zero Temperature Coefficient200 ppm
- Span Temperature Coefficient400 ppm
- Operating Temperature Range0° to 100°C
- Volume7.0 cc
- Overpressure Limit120% of Full Scale or 35 psia (240 kPa), whichever is greater
- Power Requirements24 to 32 VDC
- ComplianceCompliant to EMC Directive 2014/30/EU when used with an overall metal braided shielded cable, properly grounded at both ends.
Accessories
Power Supplies and Displays
| Compare | Description | Drawings, CAD & Specs | Avail. | Price | ||
|---|---|---|---|---|---|---|
 | PR4000BF2V2Digital Power Supply, Display, 2 Channel, RS232, ±15VDC, 1.5 Amp | In Stock | ||||
| PR4000BF5V2Digital Power Supply, Display, 2 Channel, RS485, ±15VDC, 1.5 Amp | |||||
| PR4000BS2V3Digital Power Supply, Display, 1 Channel, RS485, ±24VDC, 1.0 Amp | |||||
| PR4000BF2V3Digital Power Supply, Display, 2 Channel, RS232, ±24VDC, 1.0 Amp | |||||
| PR4000BF5V3Digital Power Supply, Display, 2 Channel, RS485, ±24VDC, 1.0 Amp | |||||
| PR4000BS2V2Digital Power Supply, Display, 1 Channel, RS232, ±15VDC, 1.5 Amp | |||||
 | PDR2000AODigital Power Supply, Display, 2 Channels, RS232, ±15 VDC, 0.75 Amp | In Stock |
