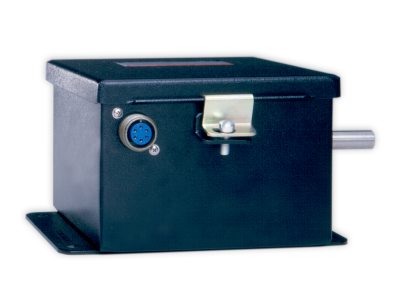

220DA 1-25000 Torr Heated (45°C) Baratron® Absolute Capacitance Manometer
Model: 220da-heated-absolute-capacitance-manometers
220DA 1-25000 Torr Heated (45°C) Baratron® Absolute Capacitance Manometer
Model: 220da-heated-absolute-capacitance-manometers
Technical Specs
Type
Pressure Transducer
Sensor Type
Industrial Capacitance Manometer
Measurement Type
Absolute
Full Scale Pressure Ranges
1, 10, 20, 100, 1000, 5000, 10000, 15000, 20000, 25000 Torr
Sensor Temperature
Controlled to 45°C
Accuracy
0.15% of Reading
Analog Output
0 to 10 VDC into > 10K Ω load and 4 to 20 mA into < 500 Ω load
Volume
7.0 cc
Overpressure Limit
35 psia
Power Requirements
115/230 VAC, 50/60 Hz
Enclosure Rating
NEMA 1
