  5. 121A Baratron® 1-25,000 Torr Bakeable Absolute Pressure Transducers

Sorry, this product is no longer offered for sale. The recommended replacement product is aa09a-absolute-capacitance-manometer.

121A Baratron® 1-25,000 Torr Bakeable Absolute Pressure Transducers

Model: 121a-heated-absolute-pressure-transmitter

121A Baratron® 1-25,000 Torr Bakeable Absolute Pressure Transducers

Model: 121a-heated-absolute-pressure-transmitter

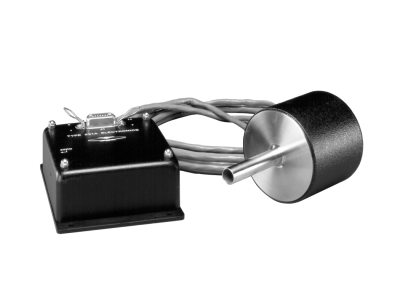

121a baratron 1-25,000 torr bakeable absolute pressure transducer

Technical Specs

  • Type
    Pressure Transducer
  • Sensor Type
    Industrial Capacitance Manometer
  • Measurement Type
    Absolute
  • Full Scale Pressure Ranges
    1, 2, 10, 100, 1000, 5000, 10000, 15000, 20000, and 25000 Torr
  • Accuracy
    0.5% of Reading (± temperature coefficients)
  • Resolution
    0.01% of Full Scale
  • Analog Output
    0 to 10 VDC into >10k Ω
  • Electrical Connector
    14-pin Micro
  • Zero Temperature Coefficient
    0.02% Full Scale/°C
  • Span Temperature Coefficient
    0.04% of Reading
  • Volume
    7.0 cc
  • Overpressure Limit
    120% of Sensor Full Scale or 35 psia whichever is greater
  • Power Requirements
    ±15 VDC @ 35mA regulated to ±5%
  • Compliance
    Compliant to EMC Directive 2014/30/EU when used with an overall metal braided shielded cable properly grounded at both ends

Technical Specs

  • Type
    Pressure Transducer
  • Sensor Type
    Industrial Capacitance Manometer
  • Measurement Type
    Absolute
  • Full Scale Pressure Ranges
    1, 2, 10, 100, 1000, 5000, 10000, 15000, 20000, and 25000 Torr
  • Accuracy
    0.5% of Reading (± temperature coefficients)
  • Resolution
    0.01% of Full Scale
  • Analog Output
    0 to 10 VDC into >10k Ω
  • Electrical Connector
    14-pin Micro
  • Zero Temperature Coefficient
    0.02% Full Scale/°C
  • Span Temperature Coefficient
    0.04% of Reading
  • Volume
    7.0 cc
  • Overpressure Limit
    120% of Sensor Full Scale or 35 psia whichever is greater
  • Power Requirements
    ±15 VDC @ 35mA regulated to ±5%
  • Compliance
    Compliant to EMC Directive 2014/30/EU when used with an overall metal braided shielded cable properly grounded at both ends
