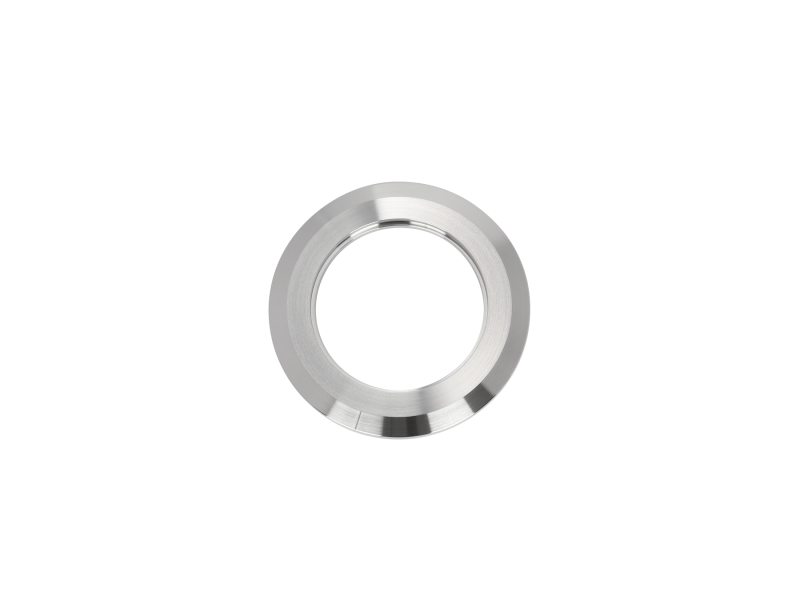

Bored Blank Flange, NW80 ISO-KF Flange, 3 in. Tube OD Bore, 304 S.S.

Technical Specs

  • Component Type
    Bored Blank Flange
  • Series
    Series 31
  • Material
    304 Stainless Steel
  • Flange Type
    ISO-KF
  • Flange Size
    NW80
  • Tube OD
    3.0 in.
  • Thickness
    0.43 in. (11 mm)
  • Inner Diameter
    3.27 in. (83 mm)
  • Outer Diameter
    4.49 in. (114 mm)
  • Dimension "A"
    0.47 in. (12 mm)
  • Dimension "B"
    2.90 in. (74 mm)
  • Dimension "C"
    3.03 in. (77 mm)
