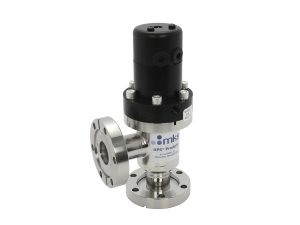

UHV Ultra-high Vacuum Isolation ValvesUHV-25-ACC-ELVNUHV Isolation Valve, NW25, 2.75 in., Angle Ports, Viton/Copper, Pneumatic
In Stock
$774

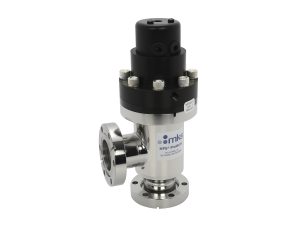

UHV Ultra-high Vacuum Isolation ValvesUHV-40-ACC-ELVNUHV Isolation Valve, NW40, 2.75 in. CF, Angle Ports, Viton/Copper, Pneumatic
In Stock
$828

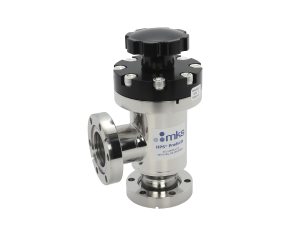

UHV Ultra-high Vacuum Isolation ValvesUHV-40-ACC-EMVMUHV Isolation Valve, NW40, 2.75 in. CF, Angle Ports, Viton/Copper, Manual
In Stock
$646

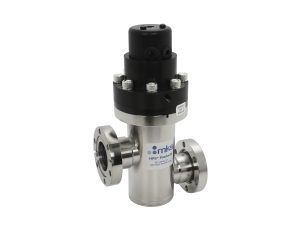

UHV Ultra-high Vacuum Isolation ValvesUHV-40-ICC-ELVNUHV Isolation Valve, NW40, 2.75 in. CF, Inline Ports, Viton/Copper, Pneumatic
15 Weeks
$919

Configuration Options

Please see the UHV Valve datasheet for available product options.

Description

UHV

Vacuum Isolation Valve, Ultra-high Vacuum

Specifications

  • Type
    Ultra-high Vacuum Valve
  • Vacuum Range
    Atmosphere to 10-9 Torr
  • Body Configuration
    Offset Inline
  • Port Size
    NW25, NW40
  • Flange Size
    ISO-KF 25, ISO-KF 40, CF 2.75 in. depending on configuration
  • Flange Type
    ISO-KF, CF, or Tube
  • Actuation
    Manual or Pneumatic
  • Limit Switch
    Optional
  • Seal
    Viton
  • Bonnet Seal
    Copper or Viton

Features

TIG Fusion-welded body

Another standard feature is a TIG fusion-welded body made of high grade, corrosion resistant 304 stainless steel for significantly fewer entrapment areas, resulting in less contaminants. The body is available with a choice of bead blasted or electropolished finishes.

UHV Applications

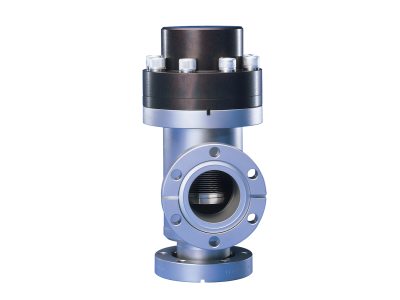

The UHV Valve is a compact vacuum valve designed for use in ultra-high vacuum systems, for physical vapor deposition, high energy physics, mass spectrometry and other applications that require an ultraclean environment.

Accessories

Replacement Solenoids

Compare Description Drawings, CAD & Specs Avail. Price
100008163Solenoid Valve, Replacement, 24 VDC, 7 Watt
14 Weeks
$179
100008165Replacement Solenoid Valve, 120 VAC, 50-60 Hz, 7.5 Watt
14 Weeks
$233

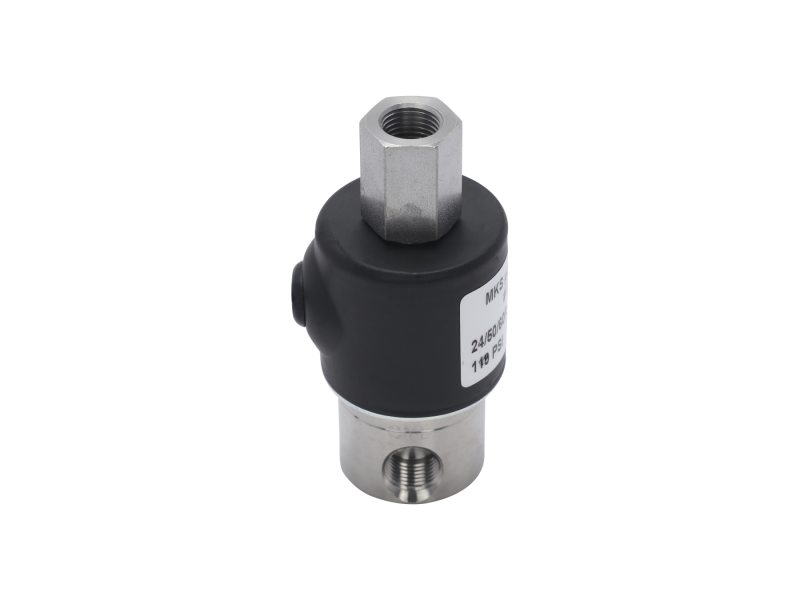

100008164Solenoid Valve, Replacement, 24 VAC, 50-60 Hz, 6 Watt
15 Weeks
$221

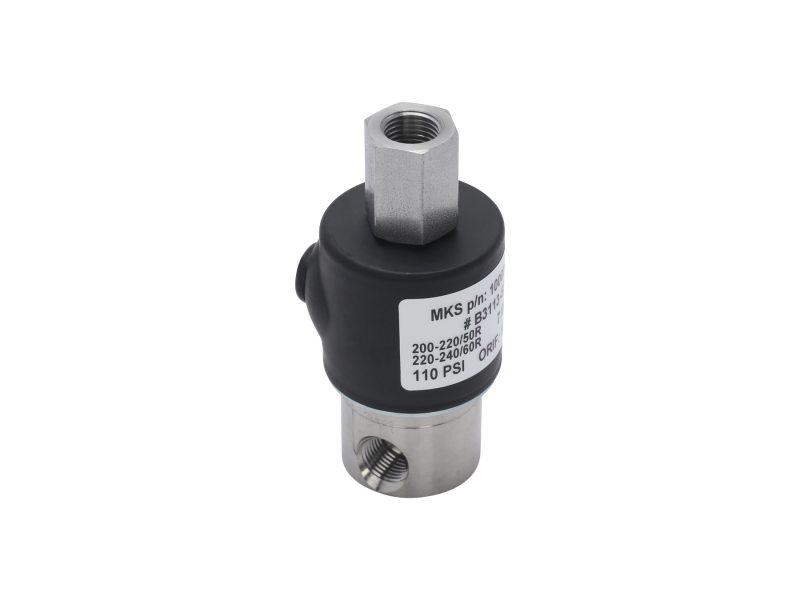

100008167Solenoid Valve, Replacement, 220-240 VAC, 50-60 Hz, 7.5 Watt
15 Weeks
$189

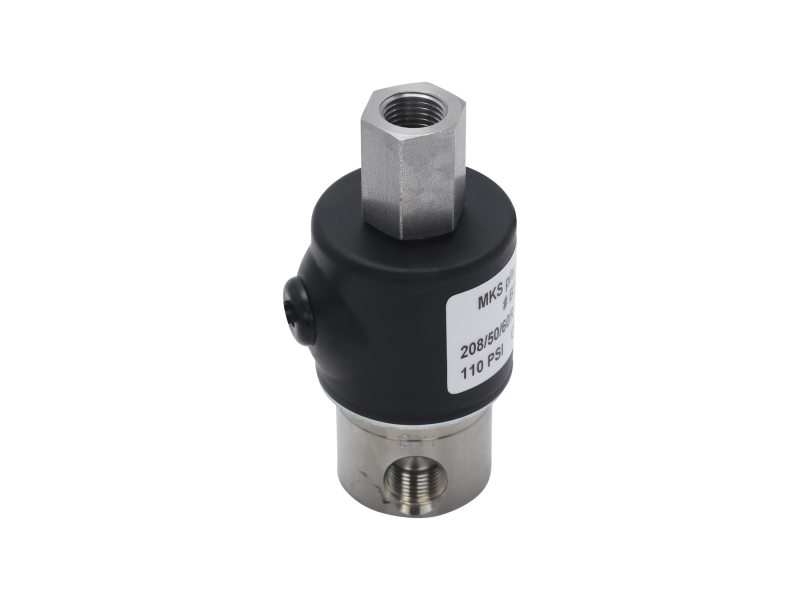

100008166Solenoid Valve, Replacement, 208 VAC, 50-60 Hz, 7.5 Watt
15 Weeks
$153

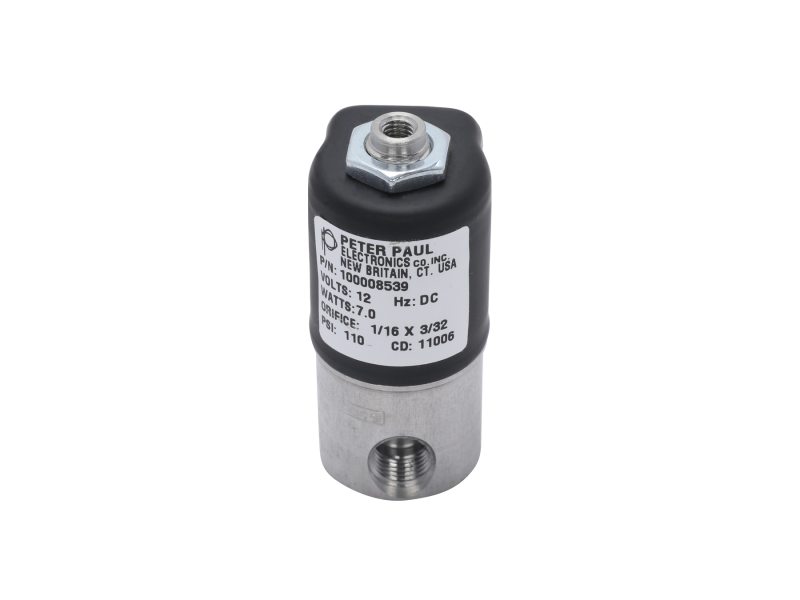

100008539Solenoid Valve, Replacement, 12 VDC, 7 Watt
15 Weeks
$111

Valve Seals

Compare Description Drawings, CAD & Specs Avail. Price
100010361O-Ring and Metal Seal Set, Viton Nose, Copper Bonnet, UHV Valve, NW25 Port
4 Weeks
$54
100010362O-Ring and Metal Seal Set, Viton Nose, Copper Bonnet, UHV Pneumatic Valve, NW40 Port
4 Weeks
$44
100010363O-Ring and Metal Seal Set, Viton Nose, Copper Bonnet, UHV Manual Valve, NW40 Port
4 Weeks
$23.10
100011771O-Ring Seals, Viton, UHV Valve, NW25 Port
4 Weeks
$62
100011772O-Ring Seals, Viton, Pneumatic UHV Valve, NW40 Port
4 Weeks
$55
100011773O-Ring Seals, Viton, Manual UHV Valve, NW40 Port
4 Weeks
$60

Limit Switches

Compare Description Drawings, CAD & Specs Avail. Price
100010913Valve Retro Fit Kit with Limit Switch, UHV Valve, NW25
4 Weeks
$861
100010914Valve Retro Fit Kit with Limit Switch, Pneumatic UHV Valves, NW40
4 Weeks
$746

Internal Rebuild Kits

Compare Description Drawings, CAD & Specs Avail. Price
100011774Valve Rebuild Kit with Viton Seal Set, Pneumatic UHV Valves, NW25
4 Weeks
$525
100002652Pneumatic Valve Rebuild Kit, Viton Nose, Copper Bonnet, UHV Valve, NW25
4 Weeks
$453
100009979Valve Rebuild Kit, Viton Nose, Copper Bonnet, Manual UHV Valves, NW40
4 Weeks
$508
100009978Valve Rebuild Kit, Viton Nose, Copper Bonnet, Pneumatic UHV Valves, NW40
6 Weeks
$625
100011775Valve Rebuild Kit with Viton Seal Set, Pneumatic UHV Valves, NW40
4 Weeks
$689
100011776Valve Rebuild Kit with Viton Seal Set, Manual UHV Valves, NW40
4 Weeks
$641

Resources

Literature

Manuals
