Polyimide Insulators for NW40-NW100 Clamped Flanges
Polyimide Insulators for NW40-NW100 Clamped Flanges

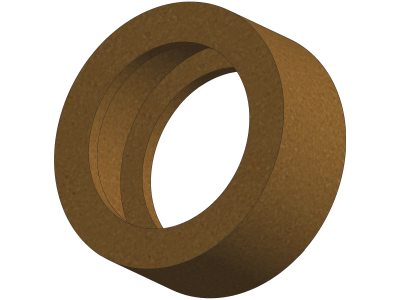

Polyimide flange insulators cover size NW40 to NW50 ISO-KF clamped flanges or size NW80 to NW100 ISO-MF double claw clamped flanges (such as the MKS Double Claw Clamp 100761106) to prevent heat from escaping for better thermal management.
- For NW40 to NW100 clamped ISO flanges
- Polyimide insulator material
- Prevent heat from escaping at flanges See All Features
| Compare | Description | Drawings, CAD & Specs | Avail. | Price | ||
|---|---|---|---|---|---|---|
 | 502040-0017Flange Insulator, Polyimide, fits NW100 ISO Flange, 5 in. to 6 in. Tubing | 5 Weeks | ||||
| 502040-0016Flange Insulator, Polyimide, fits NW100 ISO Flange, 4.0 in. to 4.0 in. Tubing | 5 Weeks | ||||
| 502035-0017Flange Insulator, Polyimide, fits NW80 ISO Flange, 3.0 in. to Hose or Bellow with Clamp | 5 Weeks | ||||
| 502035-0016Flange Insulator, Polyimide, fits NW80 ISO Flange, 3.0 in. Tubing with Clamp | 5 Weeks | ||||
| 502030-0017Flange Insulator, Polyimide, fits NW80 ISO Flange, 3.0 in. to Hose or Bellow | 5 Weeks | ||||
| 502030-0016Flange Insulator, Polyimide, fits NW80 ISO Flange, 3.0 in. to 3.0 in. Tubing | 5 Weeks | ||||
| 502025-0017Flange Insulator, Polyimide, fits NW63 ISO Flange, 2.5 in. to Hose or Bellow | 5 Weeks | ||||
| 502025-0016Flange Insulator, Polyimide, fits NW63 ISO Flange, 2.5 in. to 2.5 in. Tubing | 5 Weeks | ||||
 | 502020-0285Flange Insulator, Polyimide, fits NW50 ISO-KF Wing Nut Clamp, 2 in. to Hose or Bellow | 5 Weeks | ||||
| 502020-0248Flange Insulator, Polyimide, fits NW50 ISO-KF Wing Nut Clamp, 2 in. to Hose or Bellow | 5 Weeks | ||||
| 502020-0247Flange Insulator, Polyimide, fits NW50 ISO-KF Wing Nut Clamp, 2 in. to 2 in. Tubing | 5 Weeks | ||||
| 502020-0017Flange Insulator, Polyimide, fits NW40 ISO Flange, 2.0 in. to Hose or Bellow with Clamps | 5 Weeks | ||||
| 502020-0016Flange Insulator, Polyimide, fits NW50 ISO Flange, 2.0 in. Tubing with Clamps | 5 Weeks | ||||
| 502015-0270Flange Insulator, Polyimide, fits NW40 ISO-KF Clamp, 1.5 in. Tubing to Hose or Bellow | 5 Weeks | ||||
| 502015-0280Flange Insulator, Polyimide, fits NW40 ISO-KF Clamp, 1.5 in. Tubing to Hose or Bellow | 5 Weeks | ||||
| 502015-0269Flange Insulator, Polyimide, fits NW40 ISO-KF Clamp, 1.5 in. to 1.5 in. Tubing | 5 Weeks | ||||
| 502015-0017Flange Insulator, Polyimide, fits NW40 ISO Flange, 1.5 in. to Hose or Bellow with Clamps | 5 Weeks | ||||
| 502015-0016Flange Insulator, Polyimide, fits NW40 ISO Flange, 1.5 in. Tubing with Clamps | 5 Weeks |
Specifications
- SeriesSeries 49
- TypeFlange Insulator
- Insulation MaterialPolyimide
Resources
Literature
Series 49UL Thermal Management System(2.4 MB, PDF)
Manuals
Series 49UL Quick Start Guide(542.5 kB, PDF) Series 49 UL User Manual(1.4 MB, PDF)
Software
S49UL User Interface System(3.5 MB, APK)
