Sorry, this product is no longer offered for sale. The recommended replacement product is PBMS2H-pressure-standard.

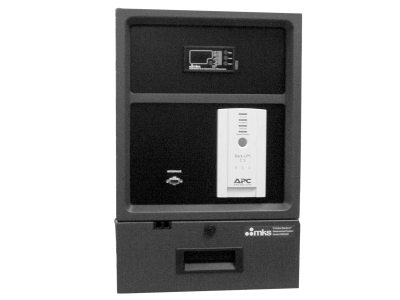

PBMS2F Two-Channel Portable Baratron® Measurement System
Model: pbms2f-2-channel-baratron-measurement-system
PBMS2F Two-Channel Portable Baratron® Measurement System
Model: pbms2f-2-channel-baratron-measurement-system
Overview
Overview
Technical Specs
- Type2-channel pressure standard
- Transfer Standard627F Absolute Sensor (NIST traceable)
- Accuracy(non-linearity, hysteresis, and non-repeatability) ± 0.12% of Reading (all ranges except 0.15% for 0.05 and 0.1 Torr, ±0.25% for 0.02 Torr)
- Resolution1 x 10-4 of Full Scale
- Fitting Type0.5 inch tubulation, NW16KF or 8 VCR®, female
- Operating Temperature15-40°C
- ReadoutPDR2000, 4½-digit LCD
- Power Requirements110 VAC, 60 Hz; 220 VAC, 50 Hz; 100 VAC, 50/60 Hz; 3A
- Warm-up Time4 hours (Use of the internal 280 VA UPS will keep the transfer standard warmed up and ready for immediate use for at least 60 minutes.)
- EnclosureMetal wheeled caddy with extendible handle and tilt stand
- Weight75 lb. (34 Kg)
Technical Specs
- Type2-channel pressure standard
- Transfer Standard627F Absolute Sensor (NIST traceable)
- Accuracy(non-linearity, hysteresis, and non-repeatability) ± 0.12% of Reading (all ranges except 0.15% for 0.05 and 0.1 Torr, ±0.25% for 0.02 Torr)
- Resolution1 x 10-4 of Full Scale
- Fitting Type0.5 inch tubulation, NW16KF or 8 VCR®, female
- Operating Temperature15-40°C
- ReadoutPDR2000, 4½-digit LCD
- Power Requirements110 VAC, 60 Hz; 220 VAC, 50 Hz; 100 VAC, 50/60 Hz; 3A
- Warm-up Time4 hours (Use of the internal 280 VA UPS will keep the transfer standard warmed up and ready for immediate use for at least 60 minutes.)
- EnclosureMetal wheeled caddy with extendible handle and tilt stand
- Weight75 lb. (34 Kg)
Resources & Downloads
Drawings & CADs
PBMS2F Dimensional Drawing(1.6 MB, PDF)
Literature
PBMS2F Portable Two-Channel Baratron® Measurement System(273.7 kB, PDF)
