Sorry, this product is no longer offered for sale. The recommended replacement product is aa07B-micro-baratron-single-end-pressure-transducers.

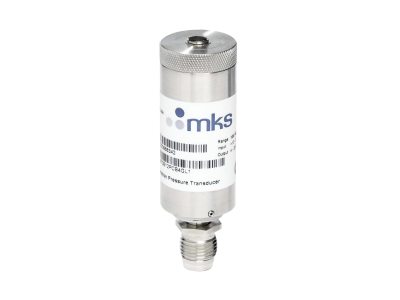

AA07A Micro-Baratron High Pressure Single-ended Pressure Transducers

Model: micro-baratron-single-end-pressure-transducers

Configuration
Single-ended
Measurement Type
Absolute
Accuracy
1.0% of Reading
Zero Temperature Coefficient
0.02% of Full Scale/°C, 50 psia to 3000 psia
0.04% of Full Scale/°C, 1000 Torr
Span Temperature Coefficient
0.04% of Reading/°C, 50 psia to 3000 psia
0.08% of Reading/°C, 1000 Torr
Overpressure Limit
1.5 x Full Scale for ranges from 1000 Torr to 500 psi
1.2 x Full Scale for ranges from 501 to 3000 psi
Burst Pressure
10 x Full Scale for ranges from 1000 Torr to 500 psi
5 x Full Scale for ranges from 501 to 3000 psi

Configuration
Single-ended
Measurement Type
Absolute
Accuracy
1.0% of Reading
Zero Temperature Coefficient
0.02% of Full Scale/°C, 50 psia to 3000 psia
0.04% of Full Scale/°C, 1000 Torr
Span Temperature Coefficient
0.04% of Reading/°C, 50 psia to 3000 psia
0.08% of Reading/°C, 1000 Torr
Overpressure Limit
1.5 x Full Scale for ranges from 1000 Torr to 500 psi
1.2 x Full Scale for ranges from 501 to 3000 psi
Burst Pressure
10 x Full Scale for ranges from 1000 Torr to 500 psi
5 x Full Scale for ranges from 501 to 3000 psi
