IDA™ In Situ Diagnostic Access Isolation Valves

Model: ida-diagnostic-access-valves

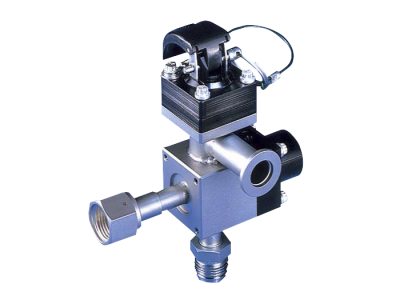

IDA™ In Situ Diagnostic Access Isolation Valves

Model: ida-diagnostic-access-valves

ida in situ diagnostic access vacuum valve

Technical Specs

  • Type
    Diagnostic Access Valve
  • Seal
    Copper, Viton®, or Chemraz®
  • Nose Seal
    Viton® or Chemraz®
  • Control Port Options
    1/8 in. tube
  • Access Port
    KF-NW16
  • Gauge Port
    8 VCR® male
  • Chamber Port
    8 VCR® female

Technical Specs

  • Type
    Diagnostic Access Valve
  • Seal
    Copper, Viton®, or Chemraz®
  • Nose Seal
    Viton® or Chemraz®
  • Control Port Options
    1/8 in. tube
  • Access Port
    KF-NW16
  • Gauge Port
    8 VCR® male
  • Chamber Port
    8 VCR® female
