Sorry, this product is no longer offered for sale. The recommended replacement product is pbts1b-portable-baratron-transfer-standard.
Pressure Transfer Standard, Portable, 0.1 Torr, 0.08% Reading Accuracy
Model: PBTS1A.1UB2
Pressure Transfer Standard, Portable, 0.1 Torr, 0.08% Reading Accuracy
Pressure Transfer Standard, Portable, 0.1 Torr, 0.08% Reading Accuracy
Model: PBTS1A.1UB2
Overview
Overview

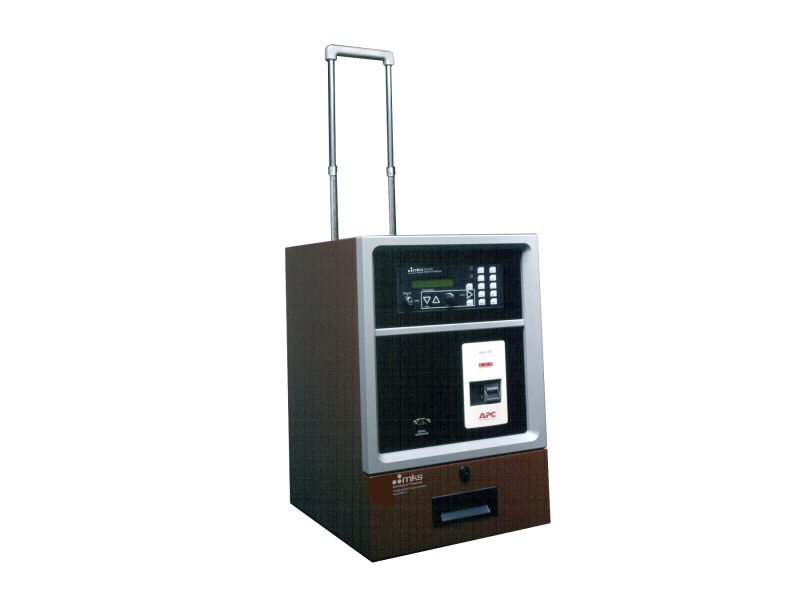

The PBTS1A.1UB2 Baratron® Transfer Standard features a 0.1 Torr (0.1 mmHg) full scale range with 0.08% accuracy of the reading. This portable single-channel high accuracy pressure standard that is designed for in situ applications. Equally at home on the bench as on the production floor.
Technical Specs
-
TypeBaratron® Transfer Standard
-
Accuracy0.08% Reading
-
Resolution1 x 10-6 of Full Scale
-
Fitting Type4 VCR female
-
Operating Temperature15 - 40°C
-
Power Requirements100 VAC, 50/60 Hz
-
Warm-up Time4 hours. However, use of the internal 280 VA UPS will keep the Transfer Standard warmed up and ready for immediate use for at least 60 minutes.
-
EnclosureMetal wheeled caddy with extendable handle and tilt stand
-
Weight75 lb. (34 Kg)
-
InterfaceRS232
-
Full Scale Range0.1 Torr
-
ConfigurationRemovable Transfer Standard (10 ft. cable with 4 VCR female transducer fitting)
