Sorry, this product is no longer offered for sale. The recommended replacement product is E27H.1TBD5B.

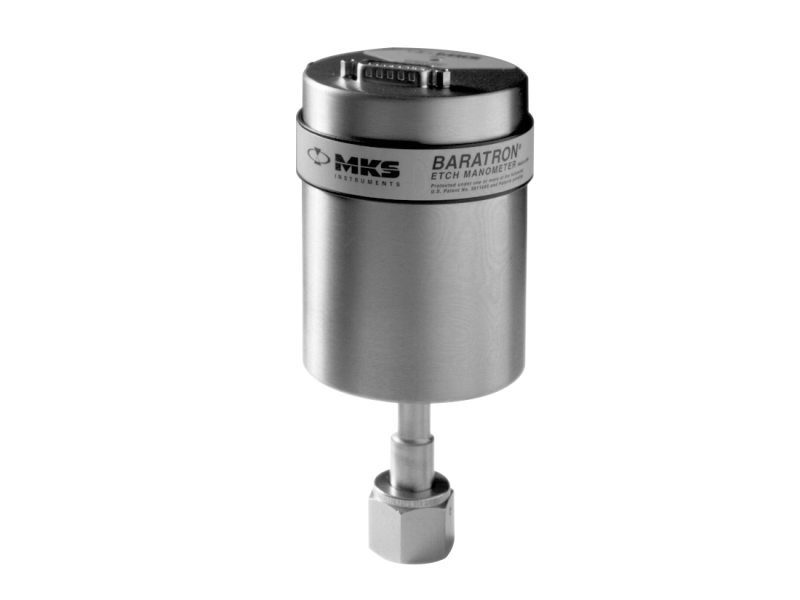

Heated Capacitance Manometer w/Etch Sensor, 0.1 Torr, 45°C, 8 VCR-F, DB15 w/Thread Lock, 0.15%/Rdg Accuracy, Horizontal Calibration

Technical Specs

  • Type
    Vacuum Pressure Transducer
  • Sensor Type
    Capacitance Manometer with Etch Sensor
  • Measurement Type
    Absolute
  • Sensor Temperature
    45°C
  • Full Scale Range
    0.1 Torr
  • Accuracy
    0.15% of Reading
  • Resolution
    0.001% of Full Scale
  • Fitting Type
    8 VCR female
  • Analog Output
    0 - 10 VDC
  • Analog Connector
    15-pin D-sub with Thread Locks
  • Calibration
    Horizontal
  • Zero Temperature Coefficient
    0.005% of Full Scale/°C
  • Span Temperature Coefficient
    0.02% of Reading/°C
  • Operating Temperature Range
    15° to 40°C
  • Volume
    6.3 cc
  • Warm-up Time
    4 hours
  • Power Requirements
    ±15 VDC ±5% @ 0.25 Amps (max.)
  • Indicators
    No
  • Compliance
    CE
