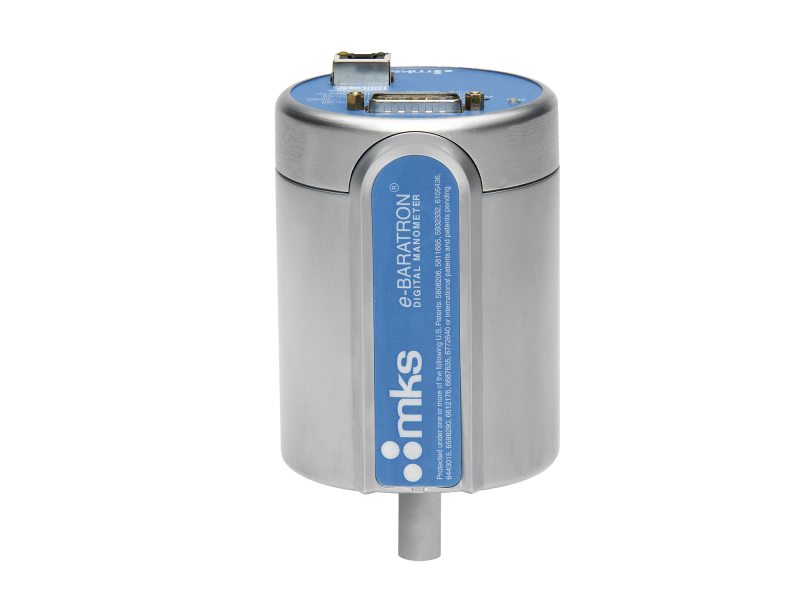

The E27E.1TCED5B1 Baratron® Ethernet-Enabled, 45°C Heated Absolute Capacitance Manometer, with an Etch Sensor features a 0.1 Torr full scale pressure range, a Swagelok® 8 VCR® female fitting, horizontal calibration, and a 15-pin "D" type analog connector with thread lock. Like other MKS Ethernet-equipped products, E27E Series manometers include embedded Internet browser software that allows it to communicate with any Windows®-based PC. Since the Ethernet port operates in parallel to the standard analog communications, the device can be diagnosed on a real-time basis during processing – a huge benefit for users who perform their own system analysis and troubleshooting. Even for users who do not use Ethernet networking, the E27E also has external LEDs to give a fast intuitive guide to the device’s status. The E27E is equipped with the MKS patented Etch sensor that greatly reduces manometer drift in processes with condensable byproducts.
