Sorry, this product is no longer offered for sale.

Ozone Injection System, Ozone Sanitization of DI Water Loop

Model: AX8600

Ozone Injection System, Ozone Sanitization of DI Water Loop

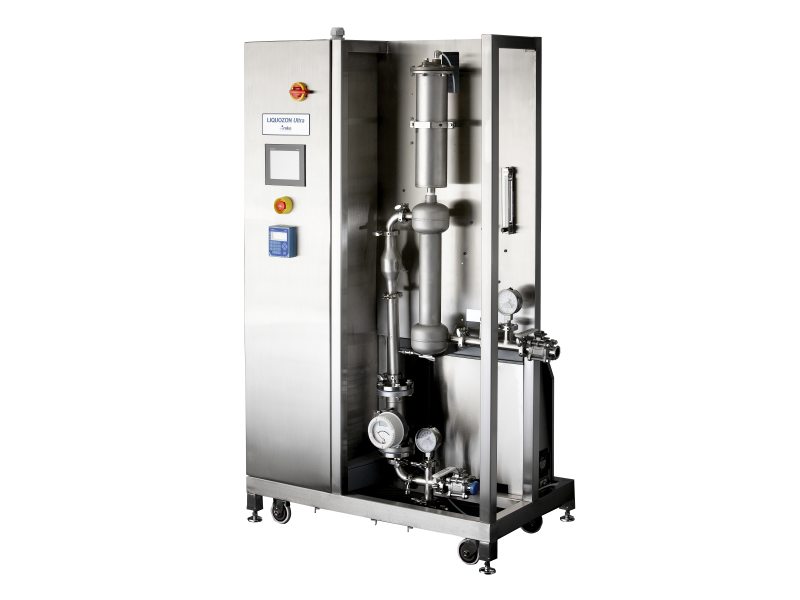

liquozon ultra ozonated di water system
liquozon ultra ozonated di water system
liquozon ultra ozonated di water system

Ozone Injection System, Ozone Sanitization of DI Water Loop

Model: AX8600

Technical Specs

  • Type
    Ozonated DI Water Unit
  • Ozone Concentration
    50 - 2000 ppb (0.05 to 2 µgrams/Liter);0 - 30 gpm (AX8600-1), 0 - 10 gpm (AX8600-2), 0 - 30 gpm (AX8600-3)
  • Flow Rate
    Injector, Flash reactor for mixing ozone into the DI water
  • Ozone Mixing
    Sized to flow rate
  • Ozone Degas Chamber
    316L Stainless Steel, Kynar® & Teflon®
  • Ozone Off - Gas Destruct
    Demineralized (resistivity ?50 K?cm)
  • Oxygen Concentration
    High Efficiency heated O3 destruct catalyst
  • Cooling Water Flow Required
    17 - 23°C (63 - 73°F)
  • Cooling Water Filtration Required
    3 L/min (0.8 gpm)
  • Cooling Water Temperature Required
    230VAC (±10%)
  • Cooling Water Quality Required
    20 microns
  • Wetted Materials
    Skid
  • Mobility
    12 SCFH of 95% O2
  • Voltage Requirements
    3Ø
  • Current Requirements
    50/60 Hz
  • Frequency
    AX8600-1: 6.6 x 2.5 x 4.2 ft., AX8600-2: 6.6 x 2.5 x 4.2 ft., AX8600-3: 6.6 x 2.5 x 6.0 ft. (width x depth x height)
  • Phase
    20 Amp
  • Dimensions
    AX8600-1: 1200 lbs, AX8600-2: 1200 lbs, AX8600-3: 1500 lbs
